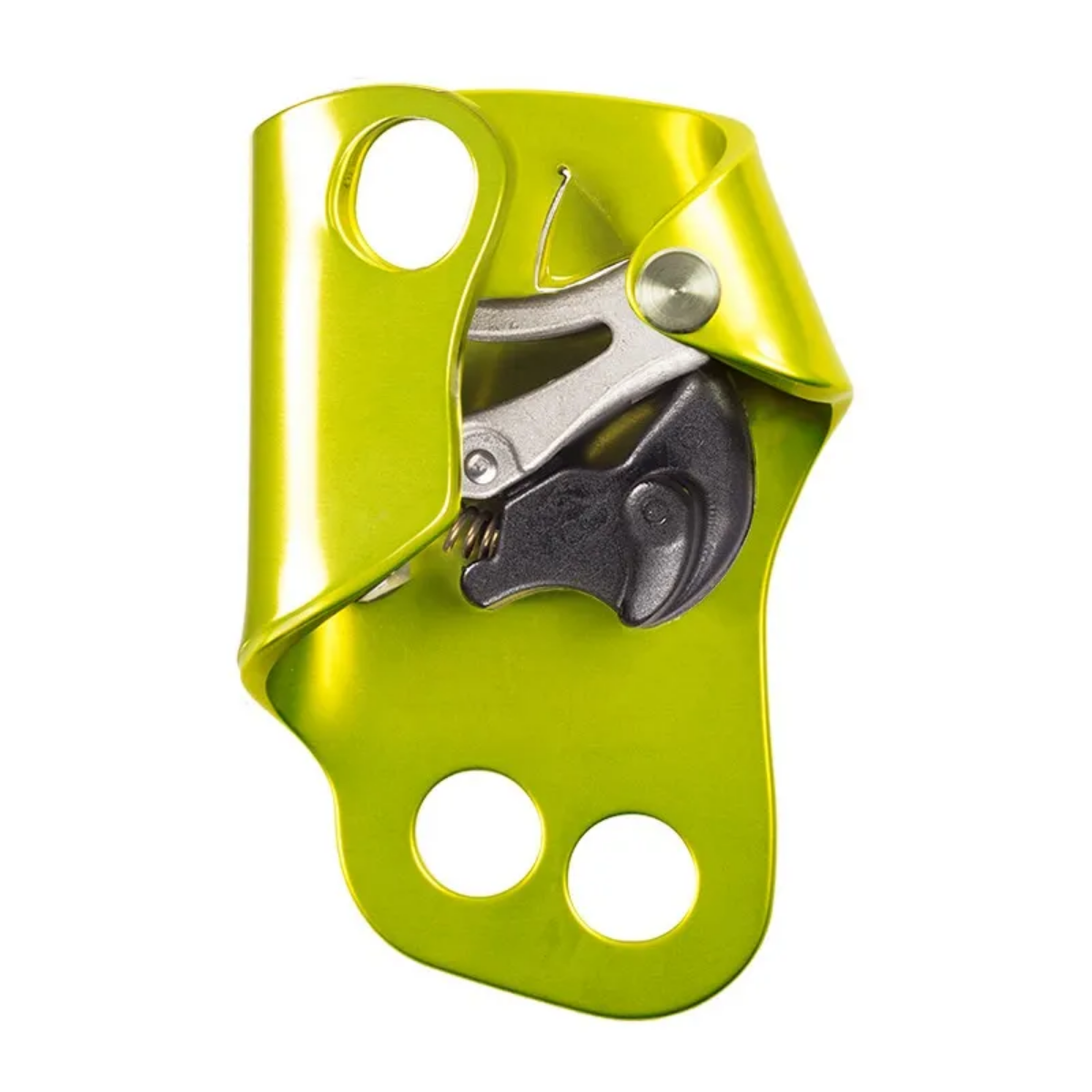

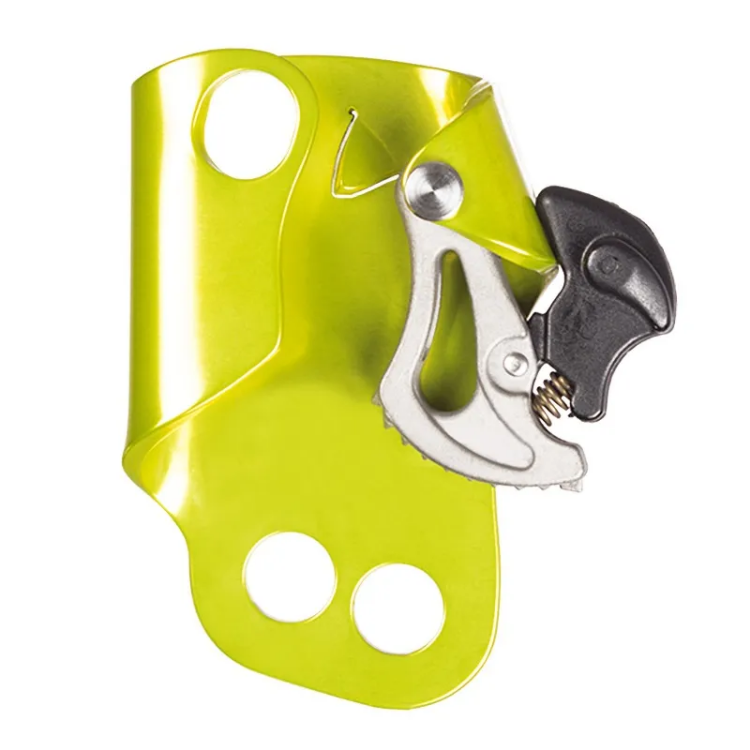

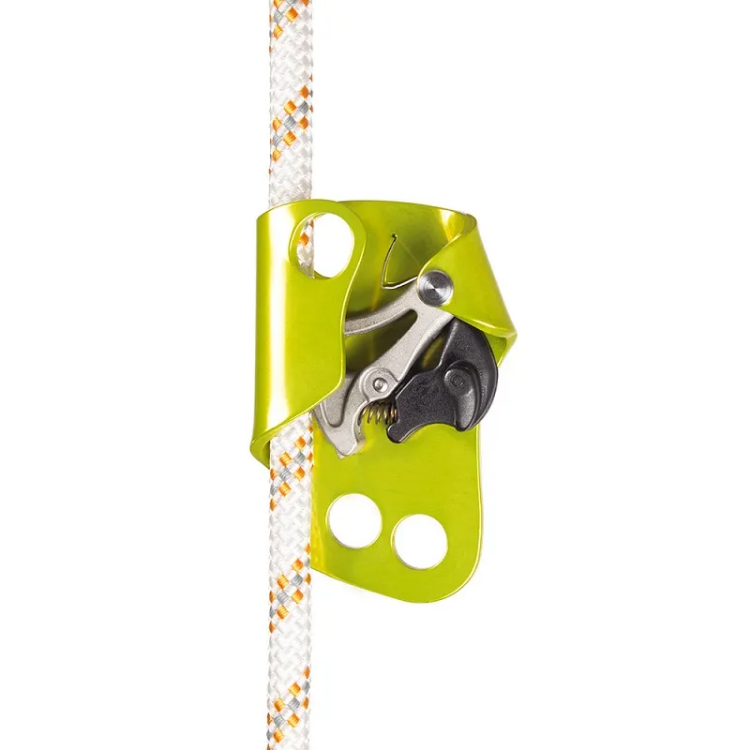

Compact Ascender

The Heightec Compact Ascender is ideal for use as spare ascender or for use in hauling and rescue systems, incorporating X-Cam.

X-Cam ascender cam design, gives a considerable increase in performance over traditional sharp-toothed models. X-Cam has a more advanced tooth design than traditional cams and is more suitable for industrial applications. It does not pluck the rope, reducing rate of rope wear.
When tested on new Tectra 11 mm low stretch rope, the X-Cam ascenders were found to be 25% stronger than their most popular sharp toothed competitor, with average breaking loads up to 675 kg for X-Cams versus 535 kg for the established design.
The greatest increase in performance is exhibited if the compact basic ascender continues to be loaded after the sheath of the rope has ruptured. In this situation, X-Cams will hold up to 200 kg on the broken sheath and rope cores, reducing the possibility of complete system failure. Established toothed designs supported only around 30kg in heightec tests – nowhere near enough to support a person.
Two attachment points allow cowstail and footloop to be connected separately which eliminates the need to open a loaded karabiner. The versatile upper attachment point allows use in hauling and rescue systems.

Features:
Small compact size
One upper attachment point for versatility
Two lower attachment points to separate lanyard and footloop
Ideal as spare ascender or use in hauling and rescue systems
For use with 9 – 13mm diameter rope

Specifications:
Sizing: Rope diameter 9mm -13mm.
Material: Alloy body, Steel cam
EN Mass Test: 100kg
Loading: 100kg SWL
Weight: 0.178 kg
Conformity: EN 567, EN12481B
Commodity Code: 7616999099
Country of Origin: UK

Component of RescuePack systems & Rope Access Kit:
RescuePack WTG with barrel
RescuePack WTG ProSeal The ultimate storage solution for mission-critical equipment. Hermetically sealed giving a 10 year lifespan with supremely simple inspection process
RescuePack WTG ProSeal with Aluminum Case
Rope Access Kit High specification industrial rope access kit with our innovative rope devices

Work at Height First Aid Pack – portable kit for use on high structures. Compliant with BS8599-1:2019. Can be attached to harness for easy transport. Contained in rucksack style case, with prominent reflective markings, zip around opening and a robust carry handle with attachment loop for clipping to a harness.
