The Heightec RescuePack delivers a mechanical advantage for lifting of around 3:1 by the use of the stainless steel Hurricane. Rope device can pay rope out but lock when a load is applied. The hook can attach to D ring or harness shoulder strap if needed.

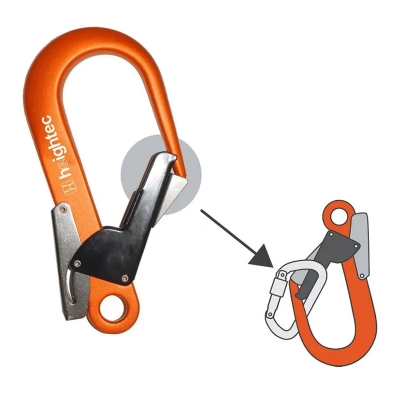

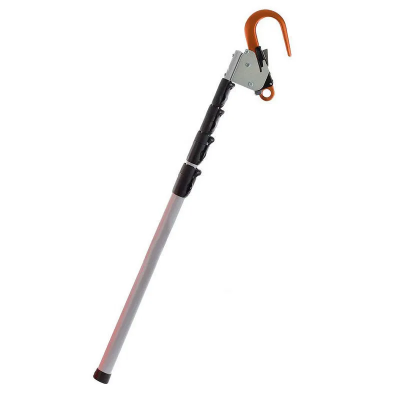

The RescuePack contains a locking and extendable rescue reach pole with a large attachment hook and unique safety feature. The telescopic pole can extend for 3.5m to reach a casualty on an extended energy absorbing lanyard. The modified scaffold hook features a smooth modified gate profile to prevent snagging and ensures easy attachment to the casualty, which is essential in cases of suspected suspension intolerance when speed is vital. This method of casualty attachment does not rely on being able to clip a specific attachment ring on the casualty. High strength, heavy duty design is rigid when fully extended, with sturdy locking mechanism and unique quick release bracket. Non-conductive.
This fall arrest rescue system can be used in very constricted space and does not need anchor points to be placed in specific positions.
The RescuePack contents includes:

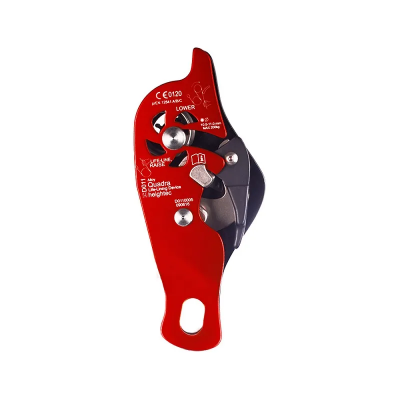

Quadra rescue life-lining and back-up device that has four different functions:
Life-lining – controlling a safety line attached to a rescuer
Lowering – remotely controlling a load
Hauling – self-locking load raising
Descending – self lowering of operator

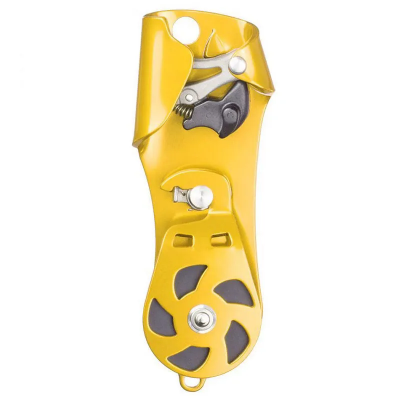

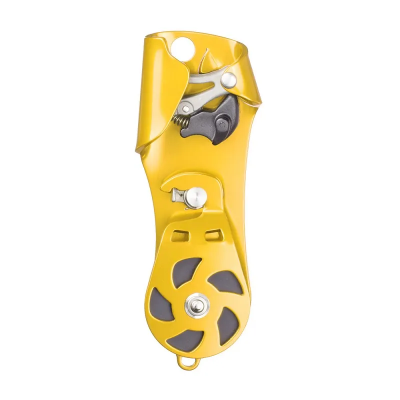

Hurricane pulley mechanism that can be placed on the rope at any point for recovery.
Unique, patented product available only from Heightec.
Alloy locking pulley for reliability and durability.
Special cam X-Cam design is specifically for industrial or professional use and offers immediate purchase on the rope whilst minimising the potential for rope damage.
The simplicity and compactness of the Hurricane compared with other traditional systems is a major advantage in allowing non-experts to achieve the lifting of a suspended casualty.
It is the only product to allow intuitive assembly of such a system. It can be attached at any point along the rope, even if it is loaded and the lifting system can be remote from the casualty, reducing the amount of rope required by 70%.
The Rescue system comes packed in the Kari 50 (B50) – from Heightec’s Kari range of tough, waterproof kit bags for storage and hauling. Designed specifically for work at height and rescue, the Kari transport bag range brings all the features of traditional dry bags but with increased protection.

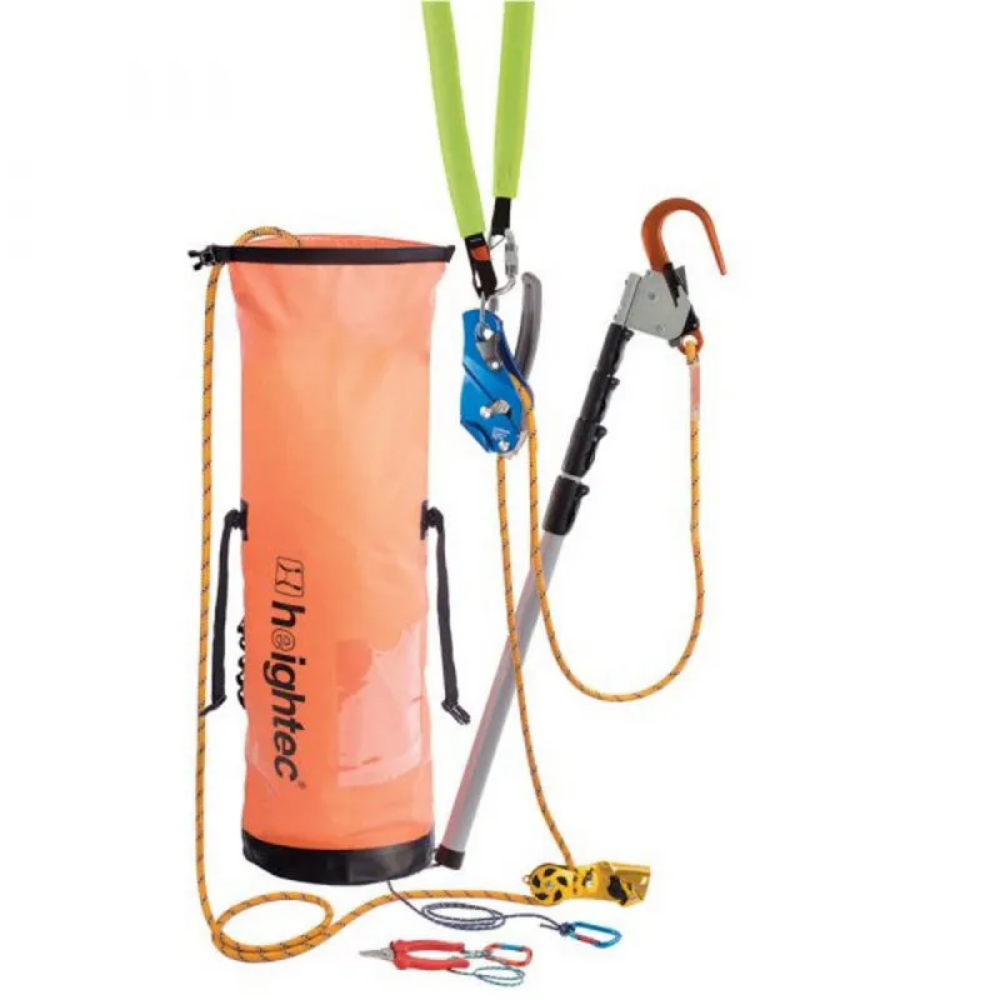

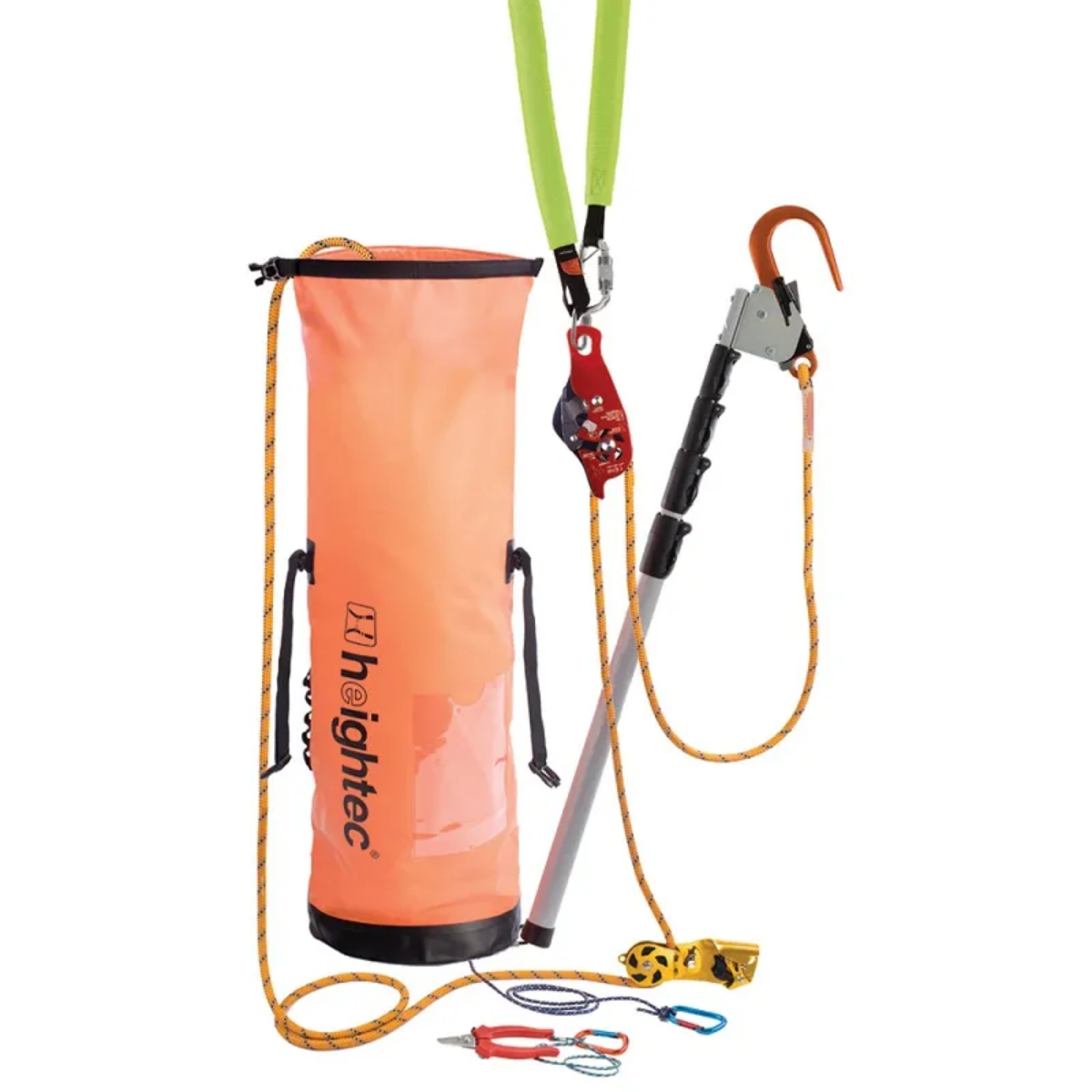

Core Components:
Hurricane Pulley
Quadra rope device
Rescue reach pole
Non-release hook
Anchor sling, protected
Connectors
Rescue Shears
Rope, 25 m or 50 m
Kari 50 transport bag – WLL 18 kg, with shoulder straps and roll top closure
Features:
Does not require the rescuer to be part of the system
Able to raise a casualty over an edge or hand rail
Requires only one quarter of the rope used by competing designs
KARI 50 Transport Bag, 50L, WLL 18 kg
Telescopic pole can reach to the length of 3.5 m
Specifications:
Sizing: 25m or 50m
Loading: 200 kg
Weight: 8.5 kg
Conformity: Various EN Approvals
