Manufacturer:

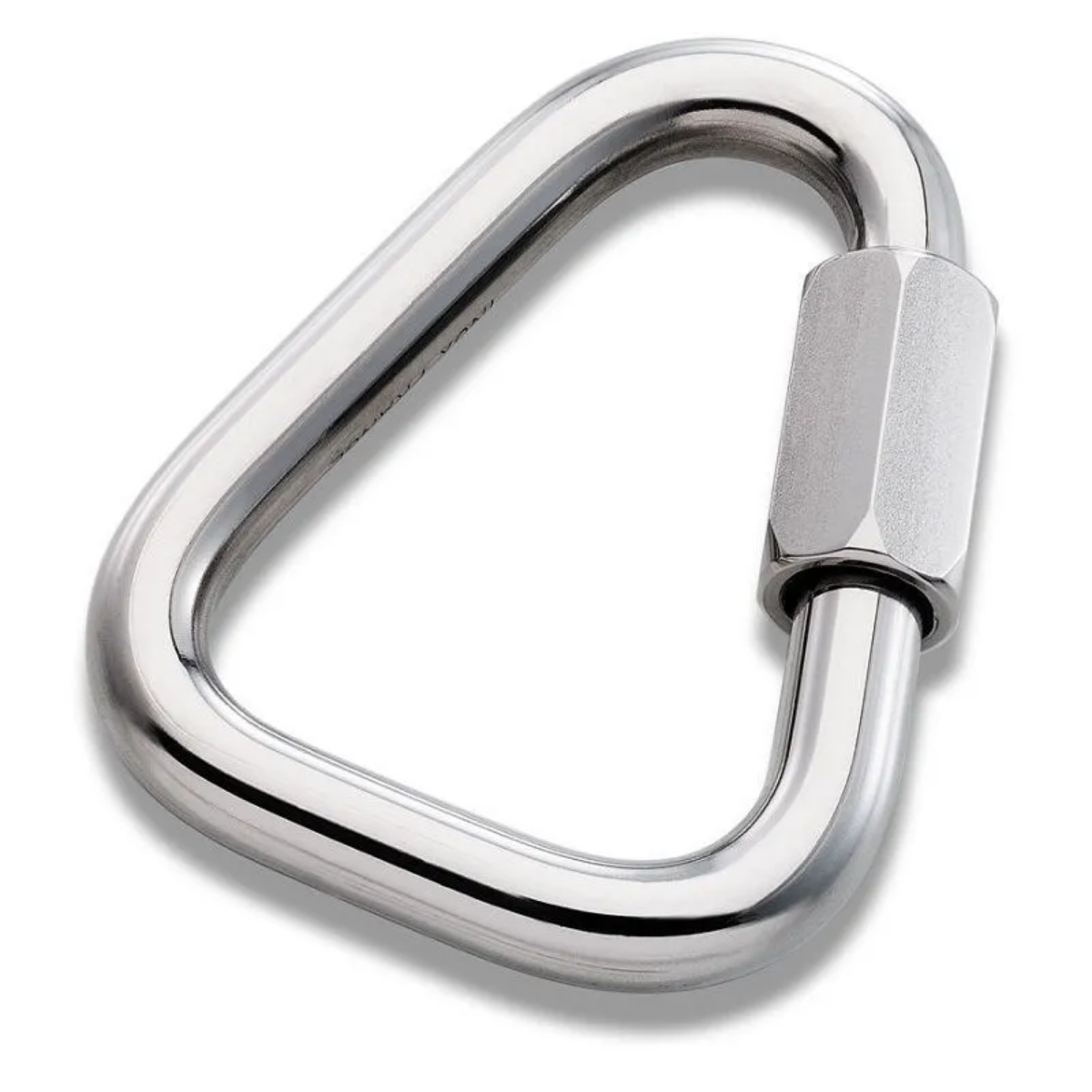

The Maillon Rapide Delta is a triangular shaped connector with a hand or spanner tightening screw thread for use in mountaineering, caving, rescue and access situations. Comes in steel with a zinc galvanised finish and stainless steel options from 4mm through to 12mm diameters.

The Maillon Rapide Delta's triangular shape makes it ideal for three way loading situations when rigging or for connecting chest harnesses to sit harnesses. We recommend the 10 and 12mm options for use with harnesses.

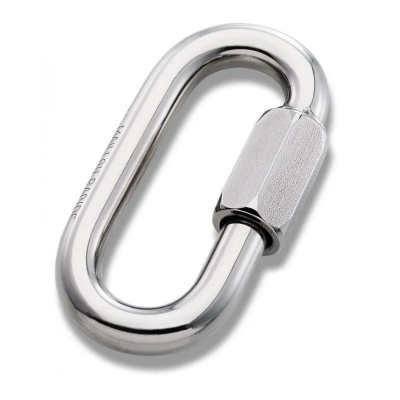

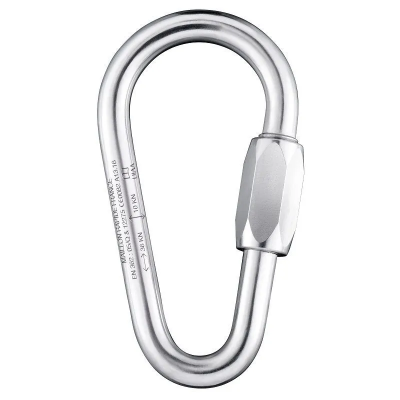

Maillon Rapide quick link connectors have a number of uses in caving, climbing and industrial access. Some are PPE rated and they are available in a number of different shapes to accommodate different loading stresses. Generally they are much stronger than karabiners of similar bar dimensions, but not as quick to operate.

  Ø
(mm)
LT
(mm)
HT
(mm)
L1
(mm)
O
(mm)
WLL
(Kg)
Tightening Torque
(Nm)
Code
3mm 30 24 21 4 110 0.30 RDL-030
4mm 4 40 32 27.5 5.5 200 0.70 RDL-040
5mm 5 48 38 30 6.5 325 0.80 RDL-050
6mm 6 56 44 35 7.5 450 1.20 RDL-060
8mm 8 73 57 40 10 770 3.00 RDL-080
10mm  10 87  67 46 12  1250  7.00  RDL-100
12mm  12 104  80  51  15  1750  9.00  RDL-120
14mm 14

123

95  57  17  2450  12.00  RDL-140
16mm  16 138  106  61  19  3150  18.00  RDL-160
