Manufacturer:

Oxan

Be the first to review this product

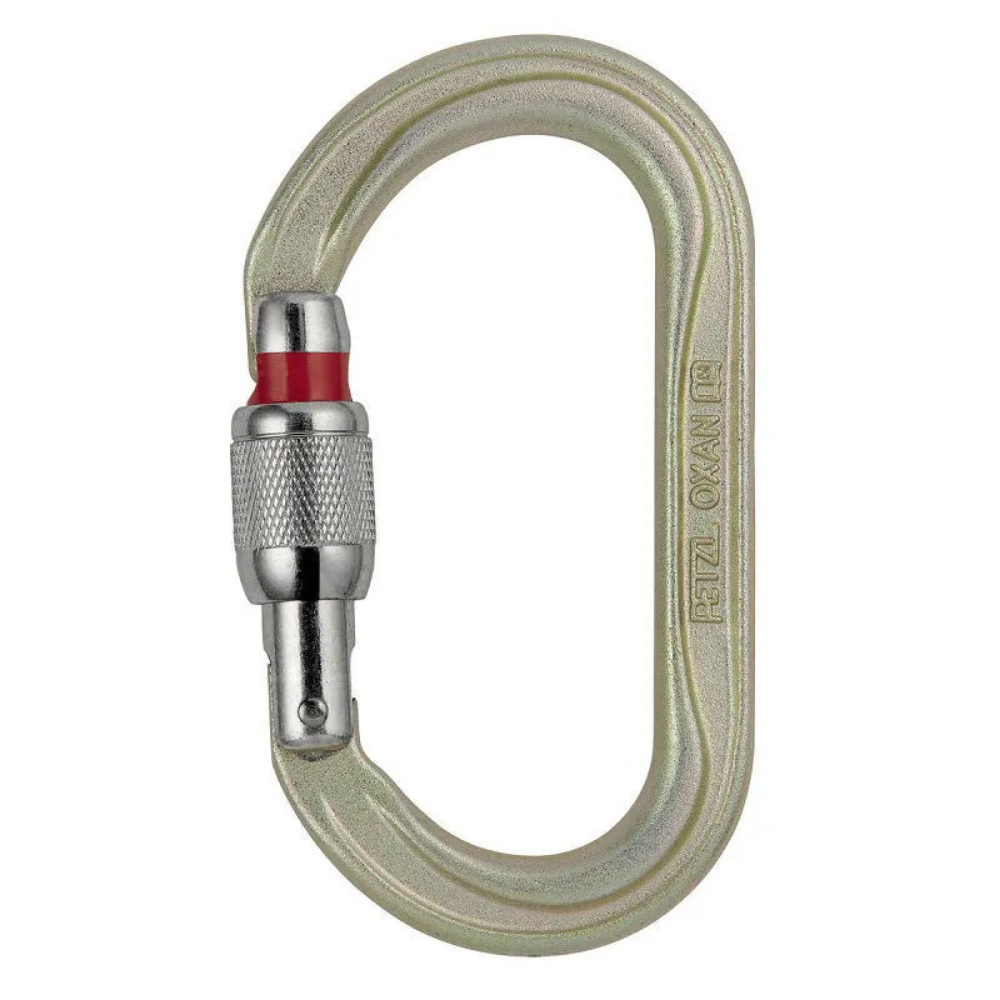

The Oxan is Petzl's high quality steel oval karabiner with a keylock gate closure, this is the steel karabiner of choice for demanding conditions. Petzl’s Keylock means less snagging, while the red indicator on the screw lock provides a visual warning if the gate is not locked.

The Petzl Oxan is a high-strength steel karabiner designed for use in difficult environments. The oval, symmetrical shape allows optimal loading of the carabiner when setting up anchors or connecting to metal structures. It is available in two locking systems: automatic Triact-Lock system or manual Screw-Lock system. Oxan Triact-Lock is available in European or international versions. Oxan can be connected to the Captiv bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Features:
High-strength steel carabiner for use in harsh environments, particularly suitable for setting up anchors or for connecting to metal structures
Oval symmetrical shape allows optimal positioning of the carabiner
May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping

Easier handling:
Fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
Keylock system to avoid any involuntary snagging of the carabiner

H cross-section:
Ensures an optimal strength/weight ratio
Protects markings from abrasion

Two locking systems available:

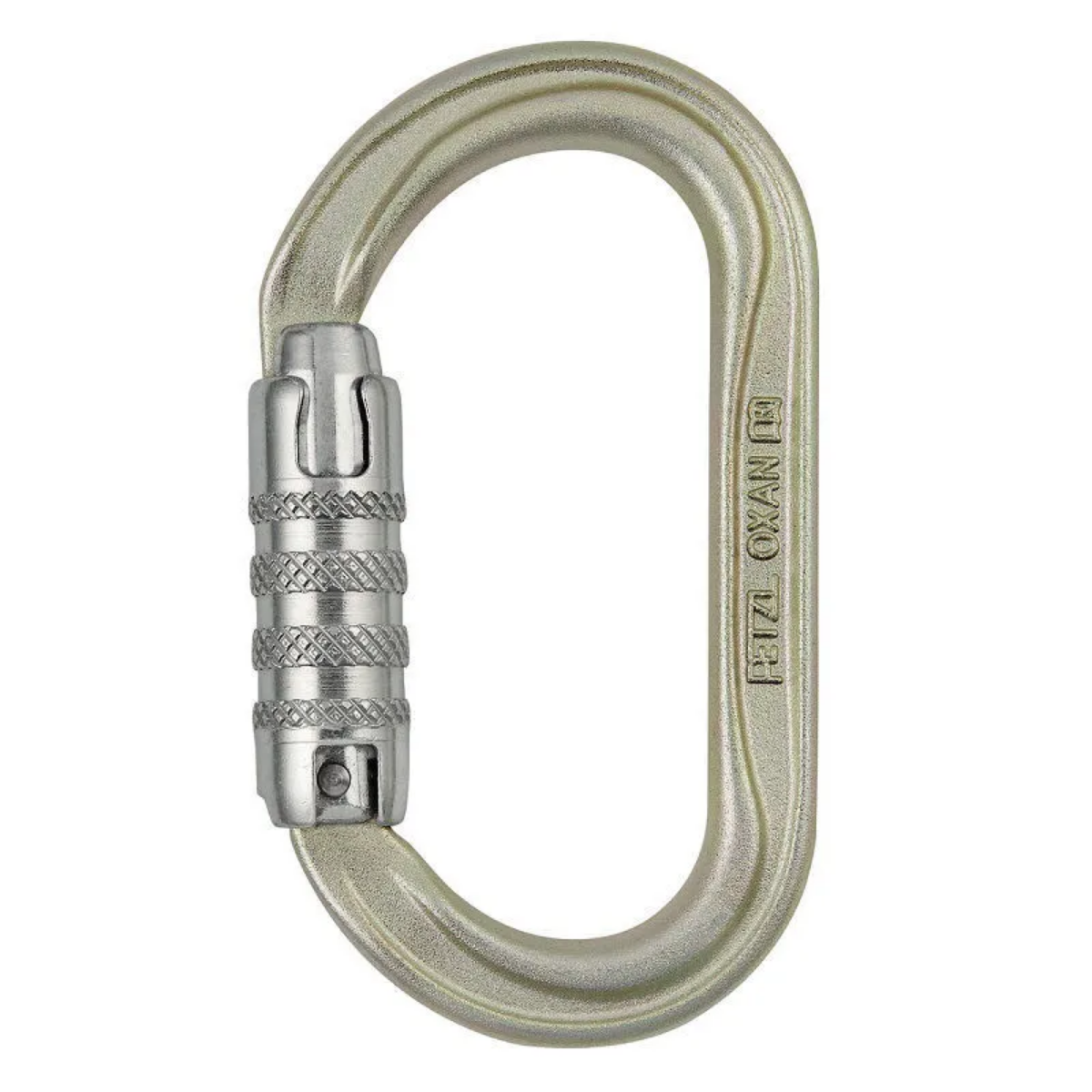

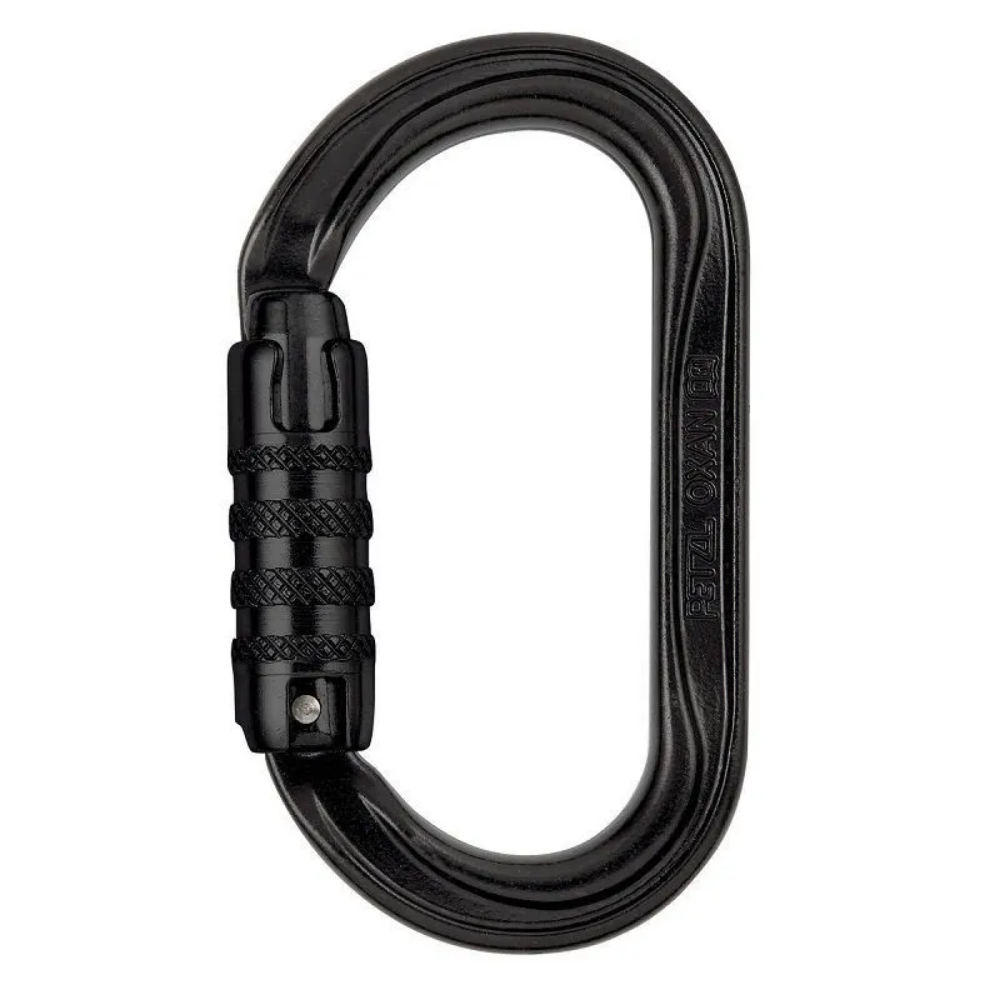

TRIACT-LOCK: automatic locking with triple-action gate opening

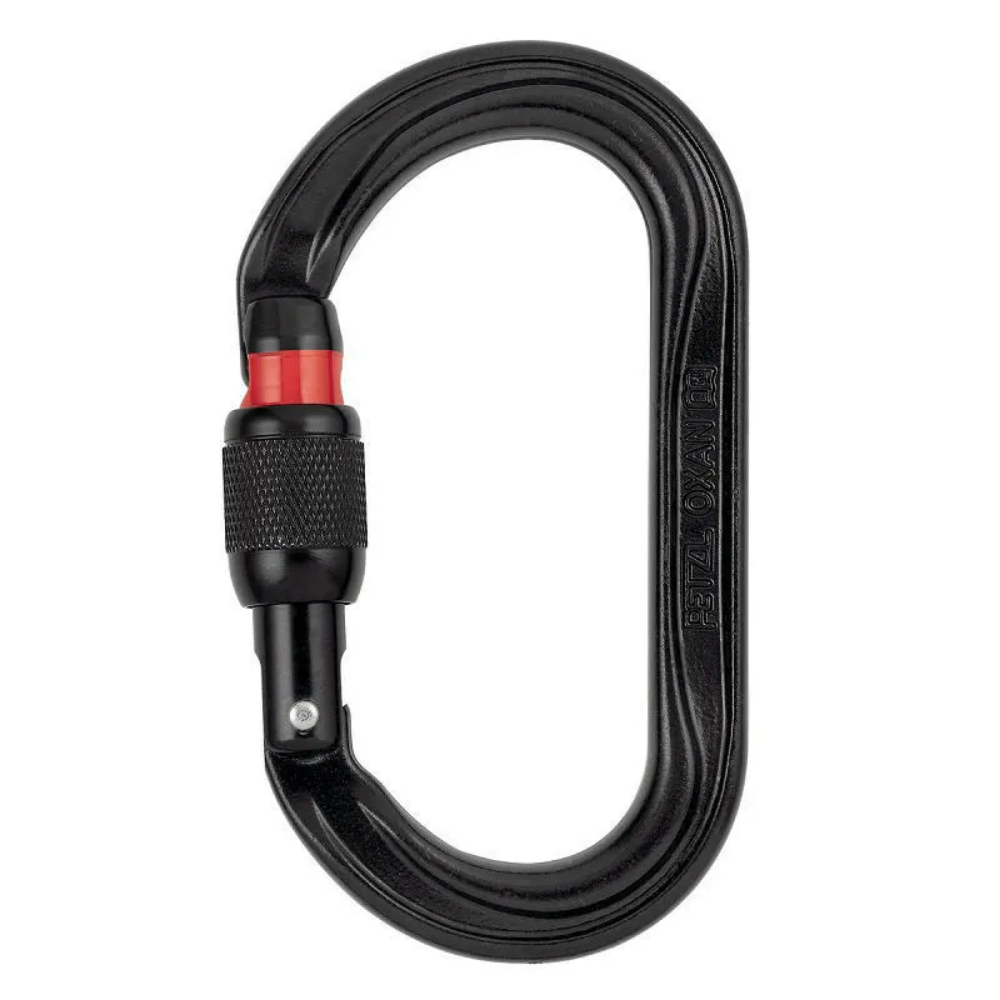

SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

Specifications:
Material(s): steel

References:

Locking system	TRIACT-LOCK	SCREW-LOCK	TRIACT-LOCK	TRIACT-LOCK	SCREW-LOCK
Certification(s)	CE EN 362, NFPA 1983 Technical Use, EAC, UKCA	CE EN 362, NFPA 1983 Technical Use, EAC, UKCA	CE EN 362, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12, EAC, UKCA	CE EN 362, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12, EAC, UKCA	CE EN 362, NFPA 1983 Technical Use, EAC, UKCA
Color(s)	gold	gold	gold	black	black
Major axis strength	38 kN	38 kN	38 kN	38 kN	38 kN
Minor axis strength	16 kN	16 kN	16 kN	16 kN	16 kN
Open gate strength	15 kN	15 kN	15 kN	15 kN	15 kN
Gate opening	22 mm	22 mm	20 mm	20 mm	22 mm
Weight	195 g	185 g	230 g	230 g	185 g
