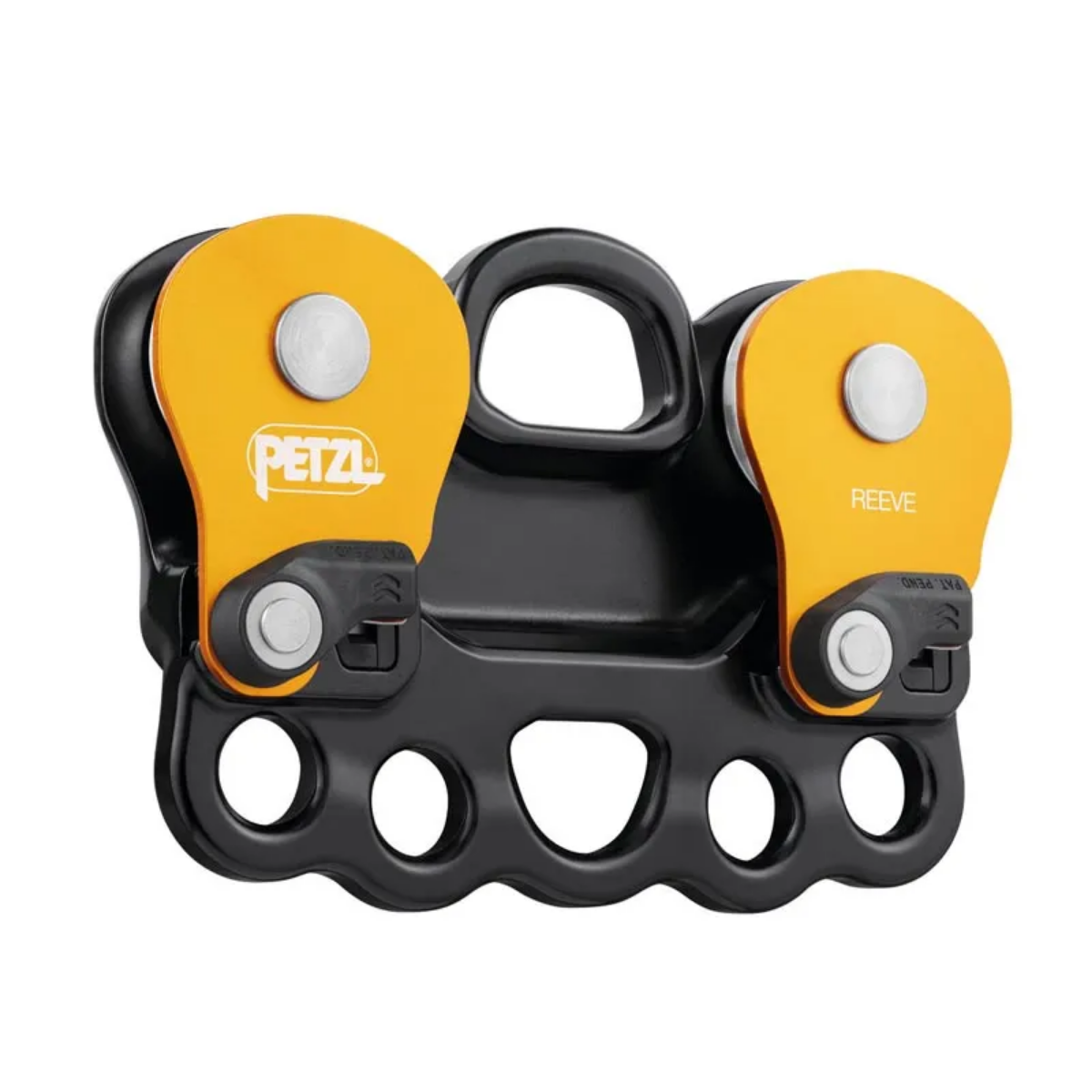

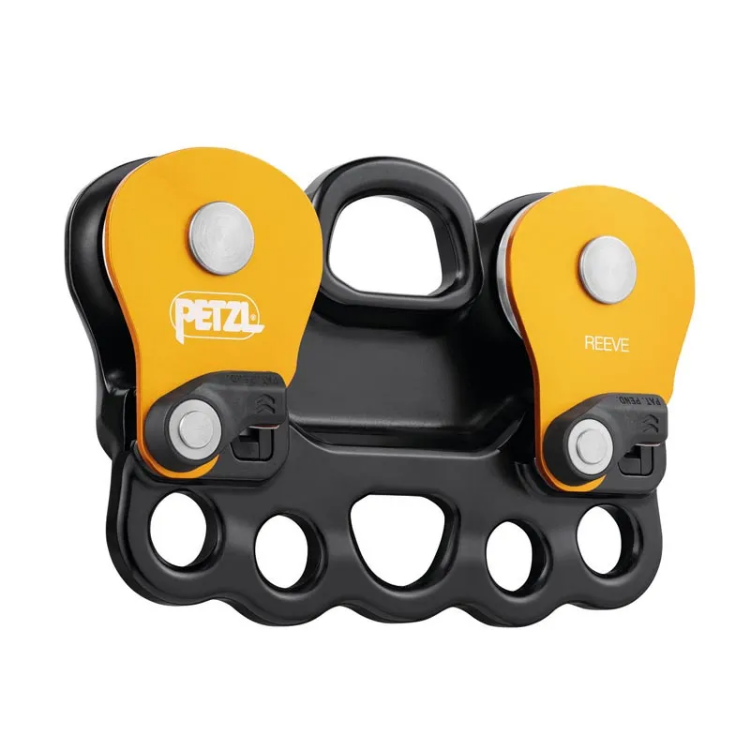

An integrated solution designed to simplify setting up rescue systems on tensioned highlines: The Petzl REEVE pulley limits the number of connectors and the height of the system, thanks to its compact design.
Operations and efficiency are optimised:

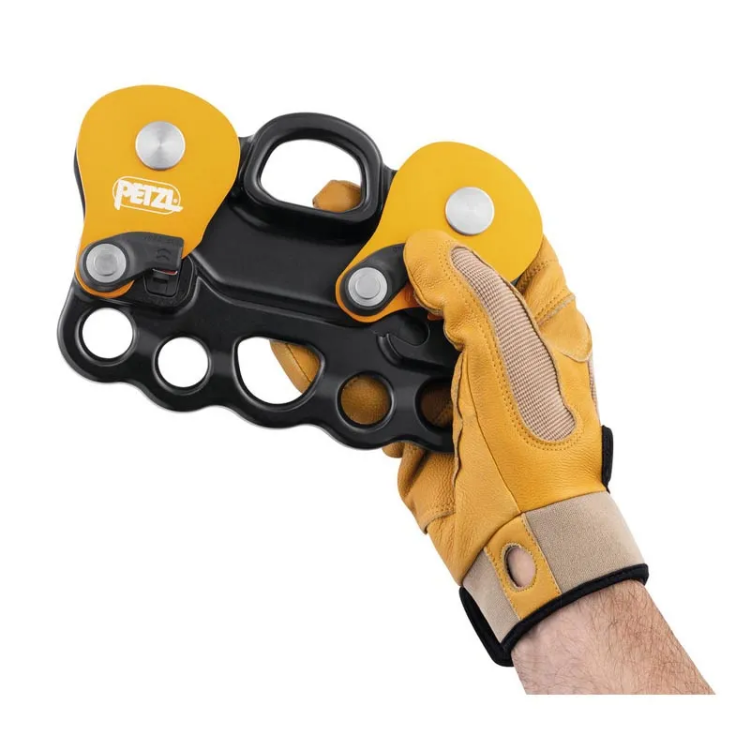

Triple-action opening of moving side plates, possible even with gloves
Red indicators provide a visual warning when the side plates are not correctly locked
Two large-diameter sheaves mounted on sealed ball bearings for excellent efficiency
Possible to rig the system before installing it on the main line

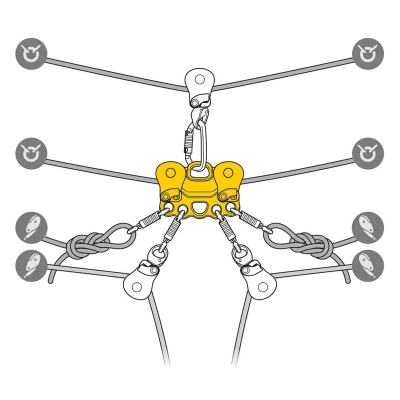

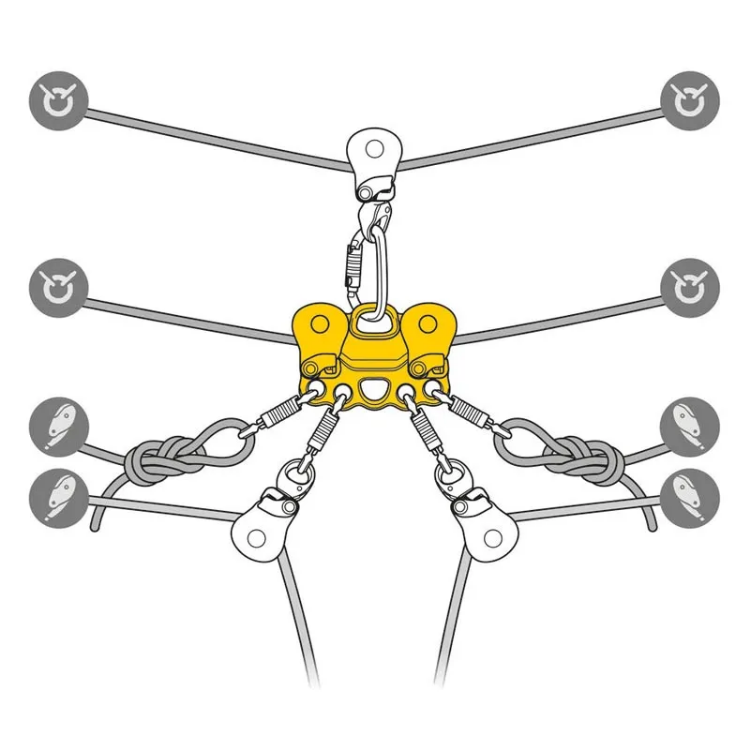

Multiple configurations and connections are possible:
System can be made redundant by placing two REEVE pulleys side by side (if distance between ropes permits), or by connecting a pulley to the upper connection hole for ropes at a further distance
Pulley can be used in a haul system
Hole design allows ropes or slings to be threaded for direct connection
19 mm holes allow locking sleeves of most carabiners to pass through
The odd number of attachment holes enables the system to be centered and balanced
Up to three people can be connected at the same time
Specifications:
Weight: 650 g

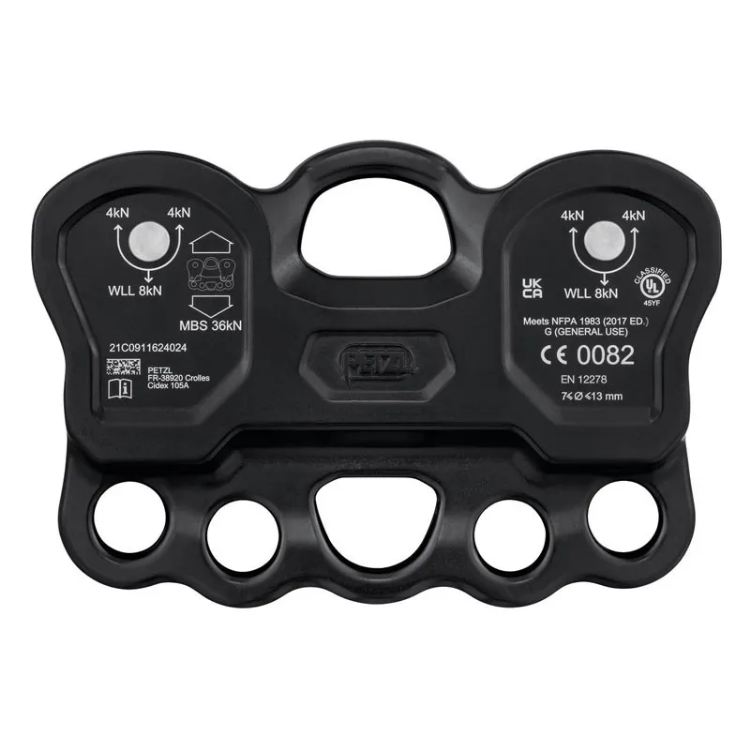

Certification(s): CE EN 12278, NFPA 1983 General Use, UKCA
Material(s): Aluminum, stainless steel, nylon
Min. rope diameter: 7 mm
Max. rope diameter: 13 mm
Sheave type: Sealed Ball Bearings
Sheave diameter: 38 mm
Working Load Limit: 4 x 2 kN = 8 kN
Breaking strength: 36 kN
Efficiency: 95 %
