The DMM Bat Rigging Plates are light, strong and versatile thanks to precision machining and heat treated alloy material. Height loss is minimised by the use of the Bat shape for complex rigging situations. With an oversized centre hole the plate is easily centralised when connected.

DMM Bat Plates raise the bar in design, performance and strength. Precision machining and heat treatment make them strong, light and incredibly versatile.

The Bat shape minimises height loss in complex rigging scenarios and generous radii allow direct attachment of textiles as well as connectors. The oversized central hole allows for effortless centralising of connections and gives a perfect technician clipping point.

Features:
Four sizes for all rigging configurations
Textile friendly surfaces with large radii
Centralised connection point for stable rescuer attachment
Can be bolted together for '100% redundancy' in system
CNC machined from high strength heat treated Aluminium
Conforms to NFPA 1983 (2012 Ed) Class G

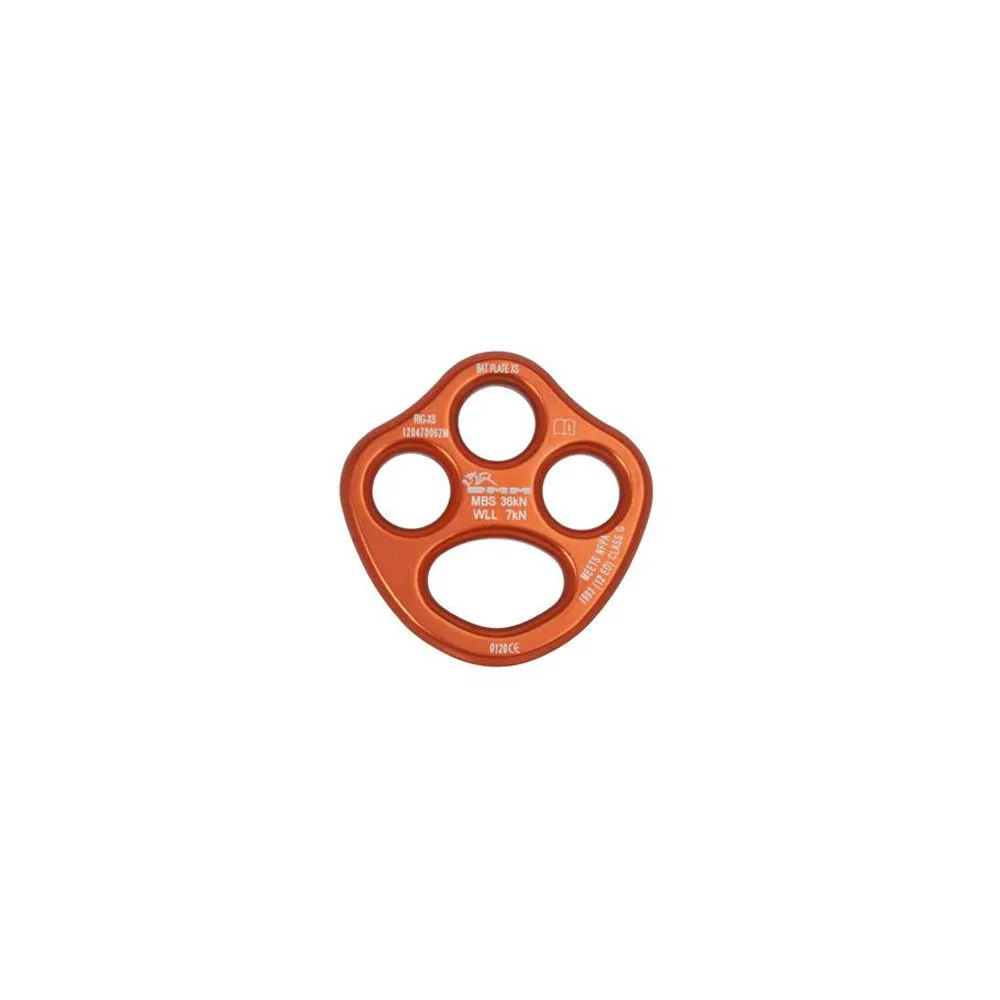

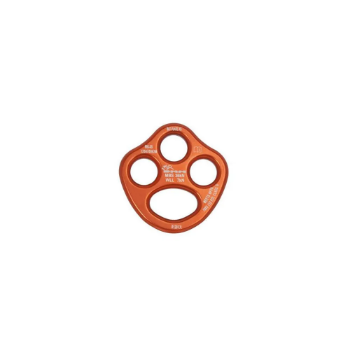

XS Rigging Plate / RIG-XS-OR / Orange / 36kN / 7kN / 62 x 62 x 8mm / 37g / NFPA 1983 (2012ED) G

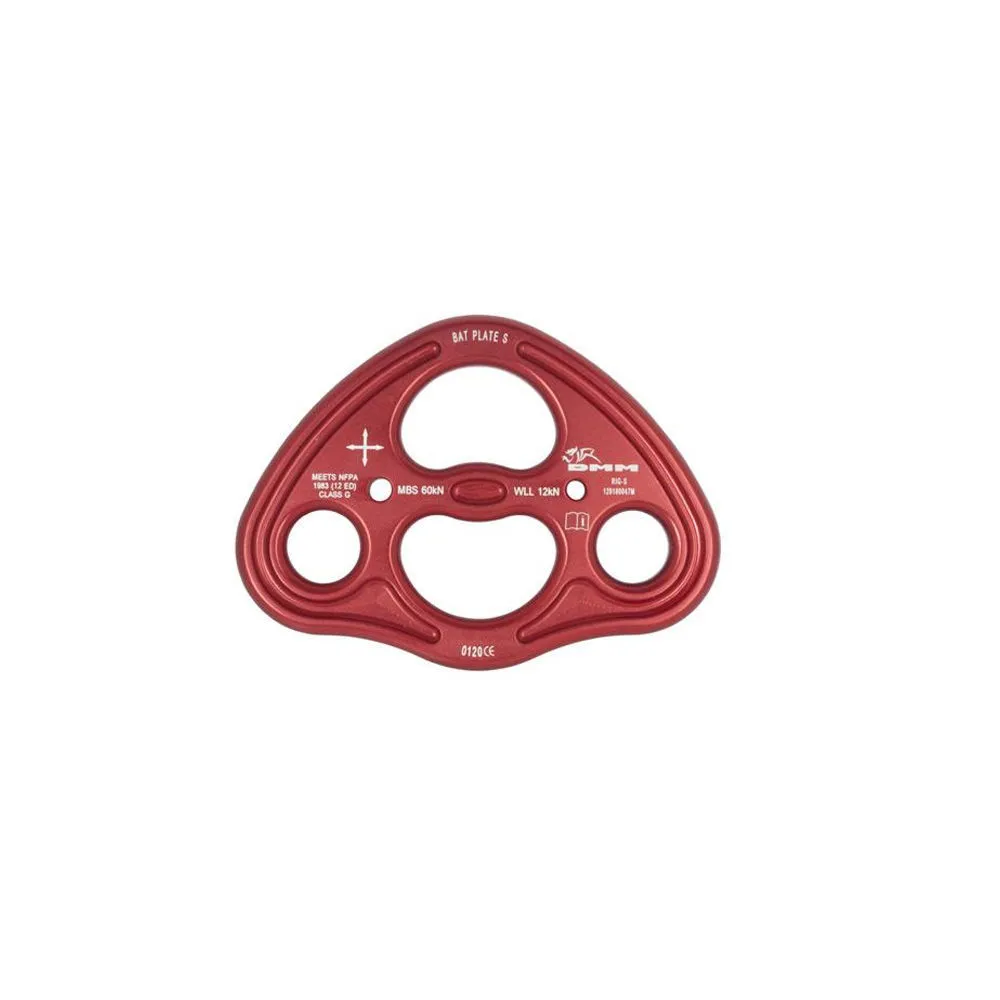

Small Rigging Plate / RIG-S-RD / Red / 60kN / 12kN / 129 x 95 x 10mm / 159g / NFPA 1983 (2012ED) G

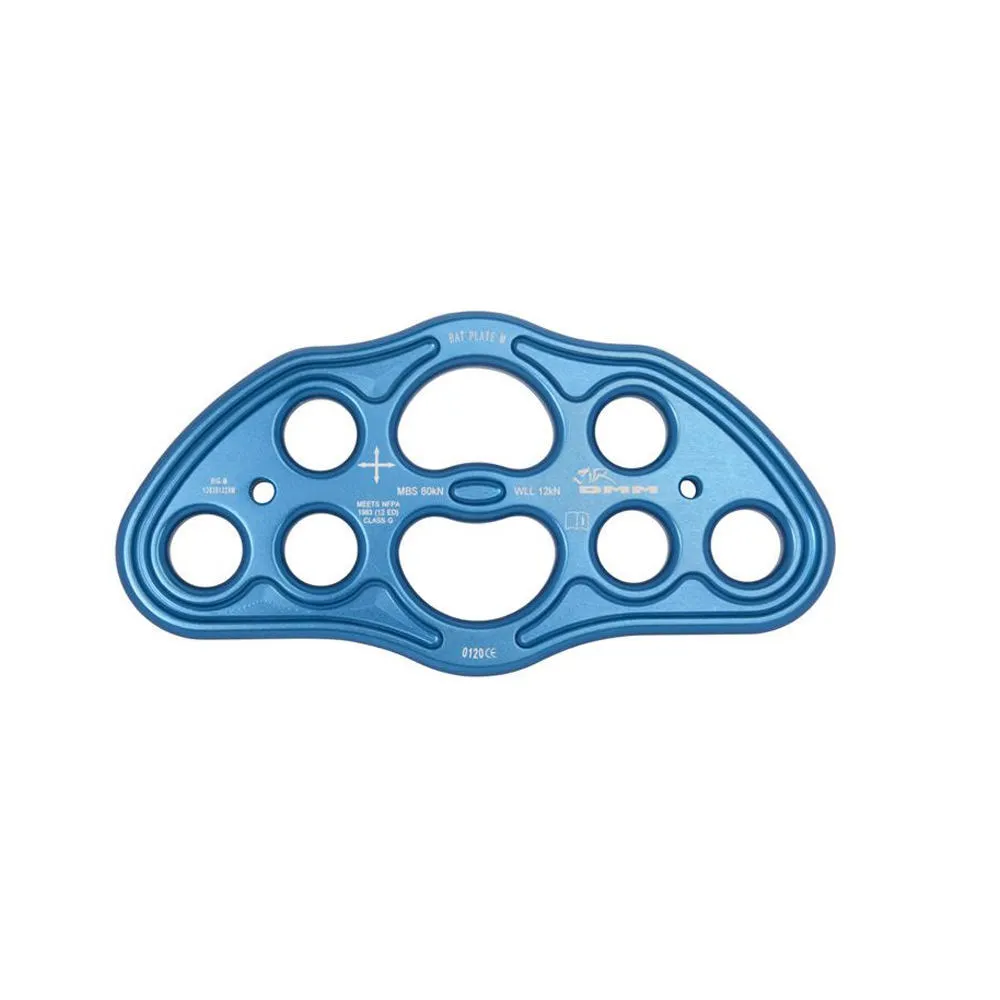

Medium Rigging Plate / RIG-M-BL / Blue / 60kN / 12kN / 189 x 97 x 10mm / 247g. / NFPA 1983 (2012ED) G

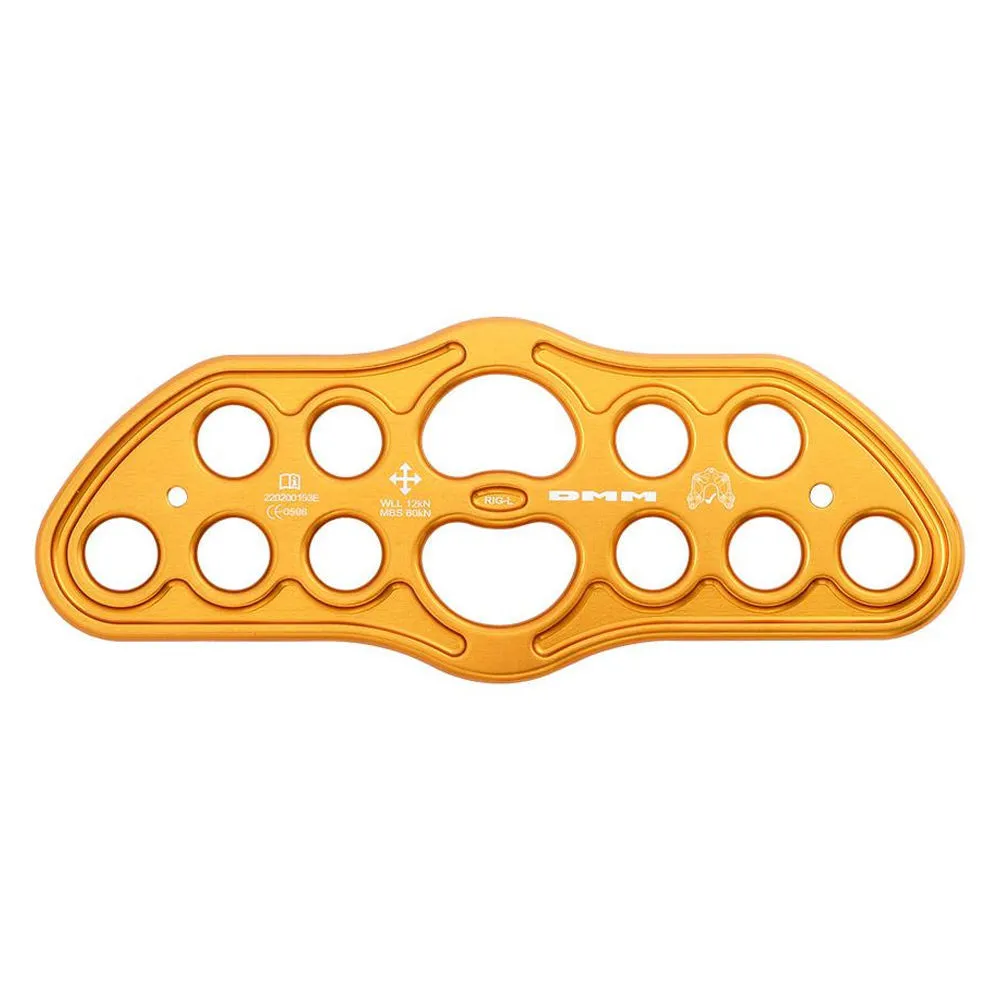

Large Rigging Plate / RIG-L-GD / Gold / 60kN / 12kN / 249 x 99 x 10mm / 322g / NFPA 1983 (2012ED) G
