Manufacturer:

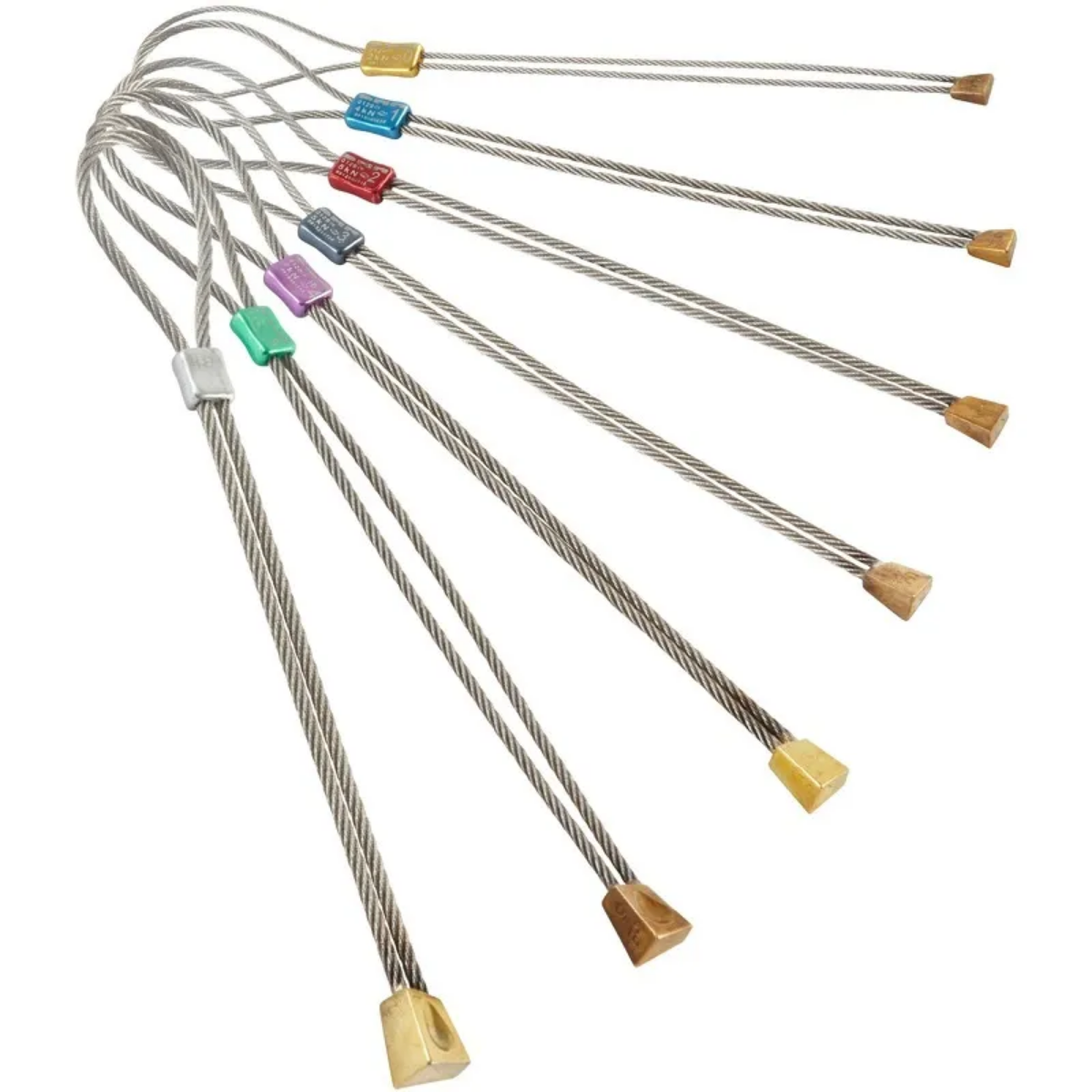

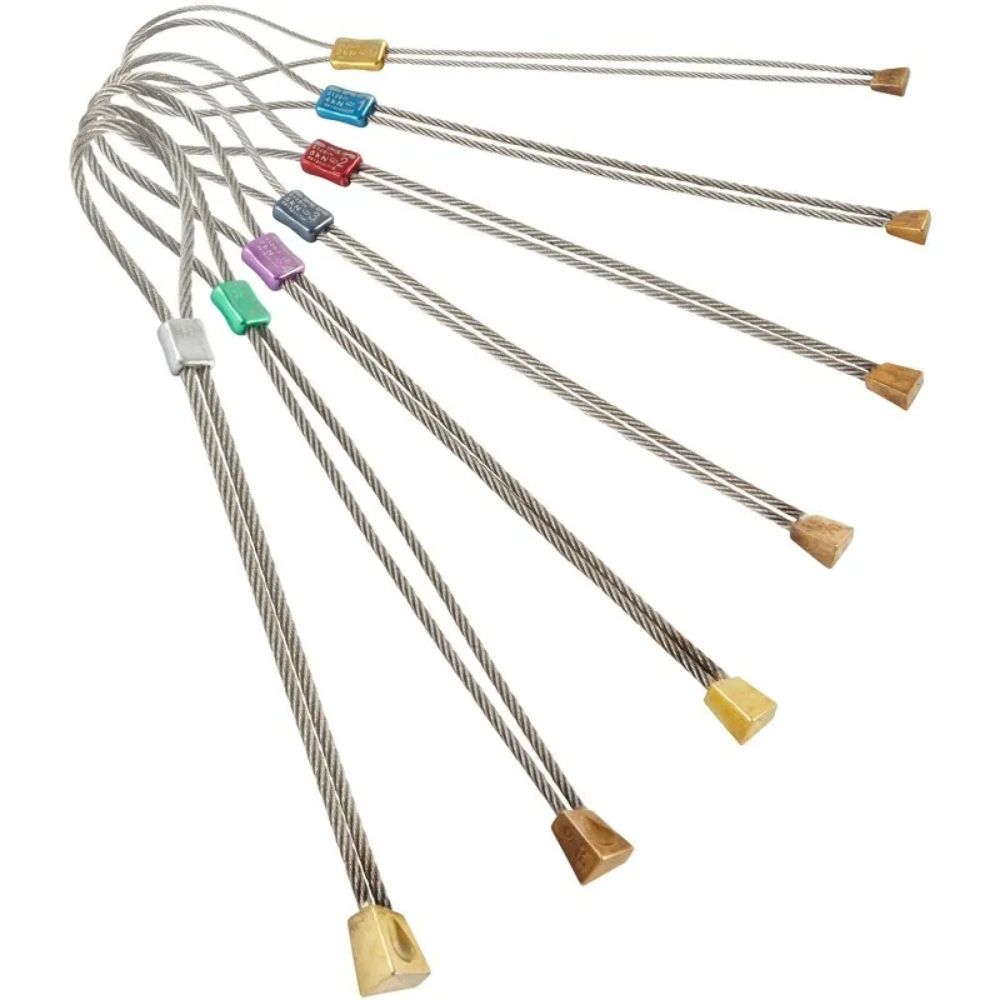

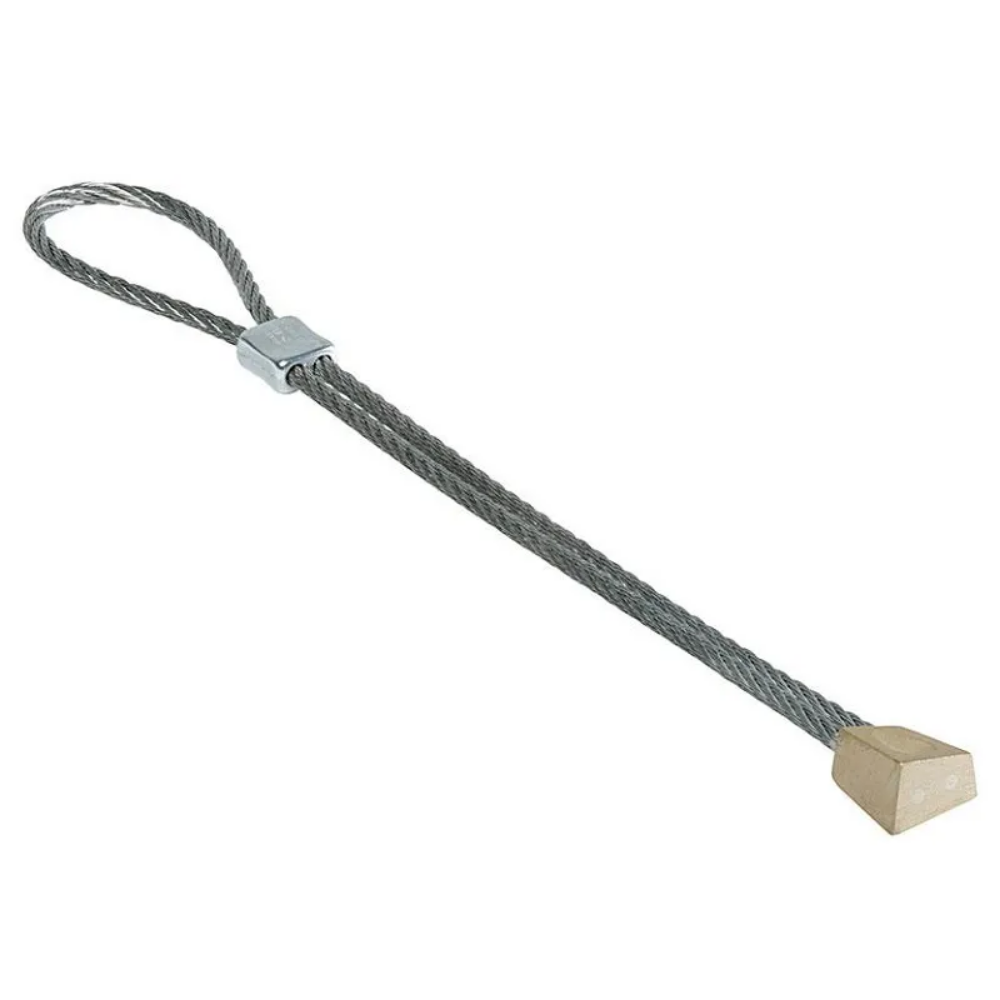

The DMM Brass Offsets are a crucial tool for protecting small flared cracks, they often fit perfectly into spaces nothing else will fit into. The brass used for the head of the nut is soft enough to bite into placements, but hard enough to resist deforming and pulling through. Wires are soldered directly into the nut head, allowing a thicker wire to be used and increasing overall strength. The colour coded swage gives easy size selection and allows the Brass Offset to self equalise when loaded, making the most of marginal placements.

DMM Brass Offset Features:
Micro protection for small cracks: As climbs become harder, the need to make the most of all available protection increases. Micro protection lets you protect cracks which normal sized pieces would not fit. Having these wires on your rack gives you more options.
Asymmetrical taper gives stable placements in offset cracks: Nuts with an offset taper protect cracks where normal nuts would not sit properly, such as flared cracks and peg scars. Use in combination with normal nuts to find security in almost any crack.
Wires soldered directly into heads for strength: The wires of IMPS and Brass Offsets are soldered directly into their heads. This allows a thicker wire to be used, increasing the strength rating of each nut.
Brass heads for optimal characteristics in marginal placements: Brass nuts are made from a special blend of brass and silicone that is soft enough to bite into placements, but hard enough to resist pulling through them. This helps them make the most of marginal placements.
Colour coded for easy size identification: The DMM protection range is colour coded for quick and easy size selection. Colours are co-ordinated across passive and active protection, for quick selection of alternatives if your first choice doesn’t fit.
Passive protection works in wet and icy conditions: Passive protection works by jamming in constrictions to prevent falls. It is suitable for use in all conditions. Unlike active protection such as cams, passive protection can be used in wet or icy cracks, where friction is reduced.

Certification: EN12270:2013

Specifications:

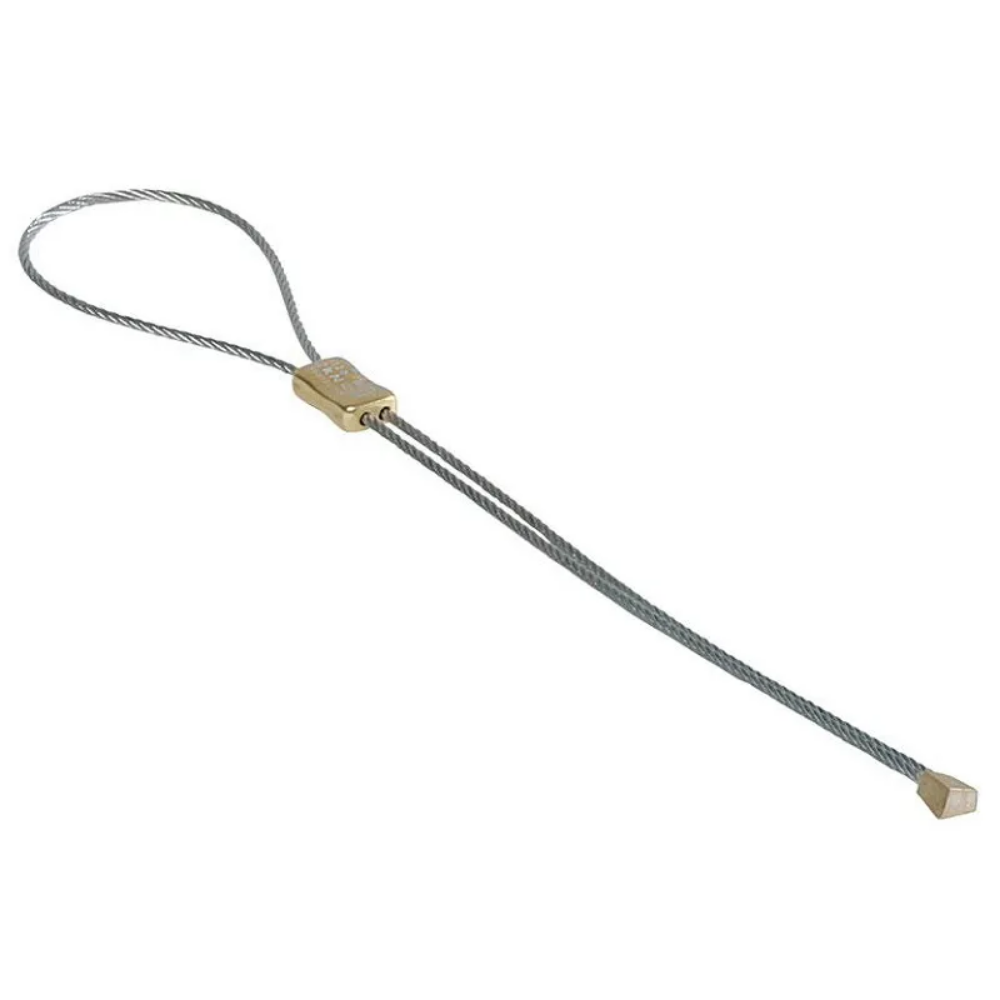

HB Brass Offset 0:
Colour: Gold
Strength: 2kN
Weight: 4g
Range: 3.7 / 5.5mm

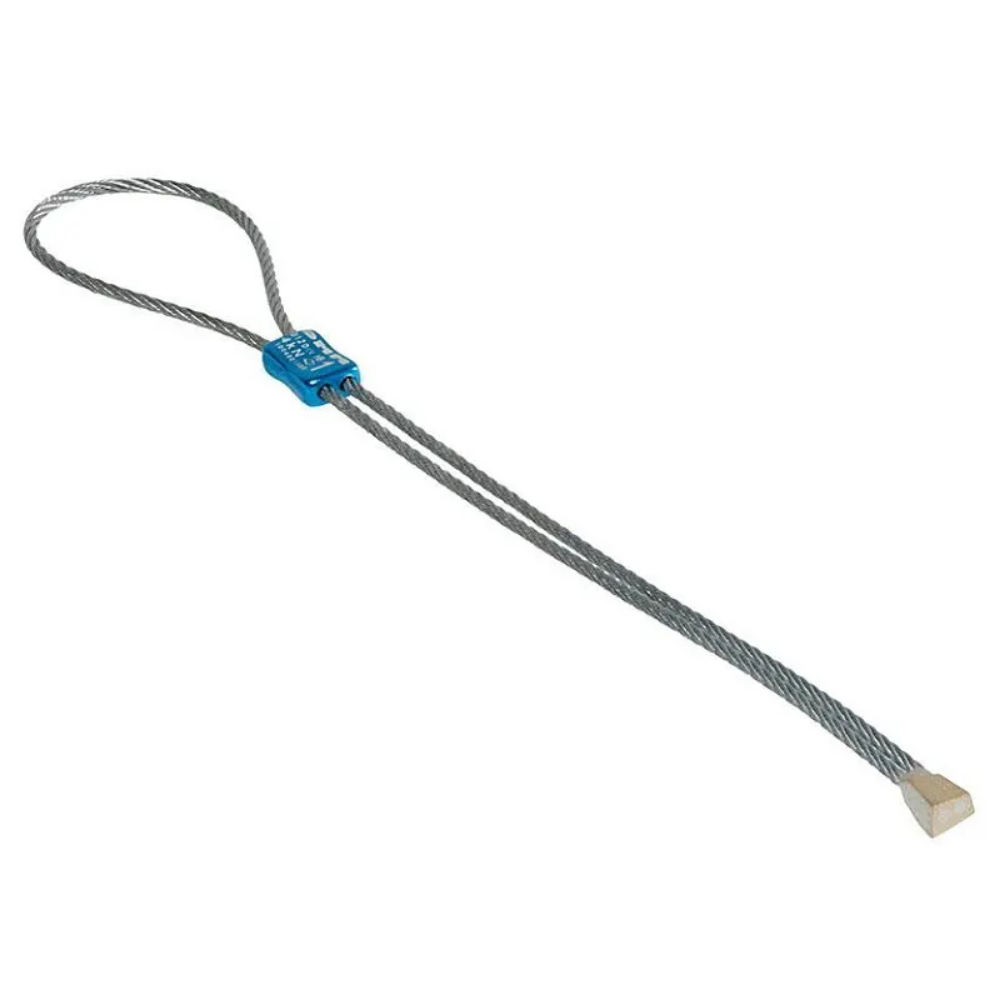

HB Brass Offset 1:
Colour: Blue
Strength: 4kN
Weight: 7g
Range: 4.3 / 6.5mm

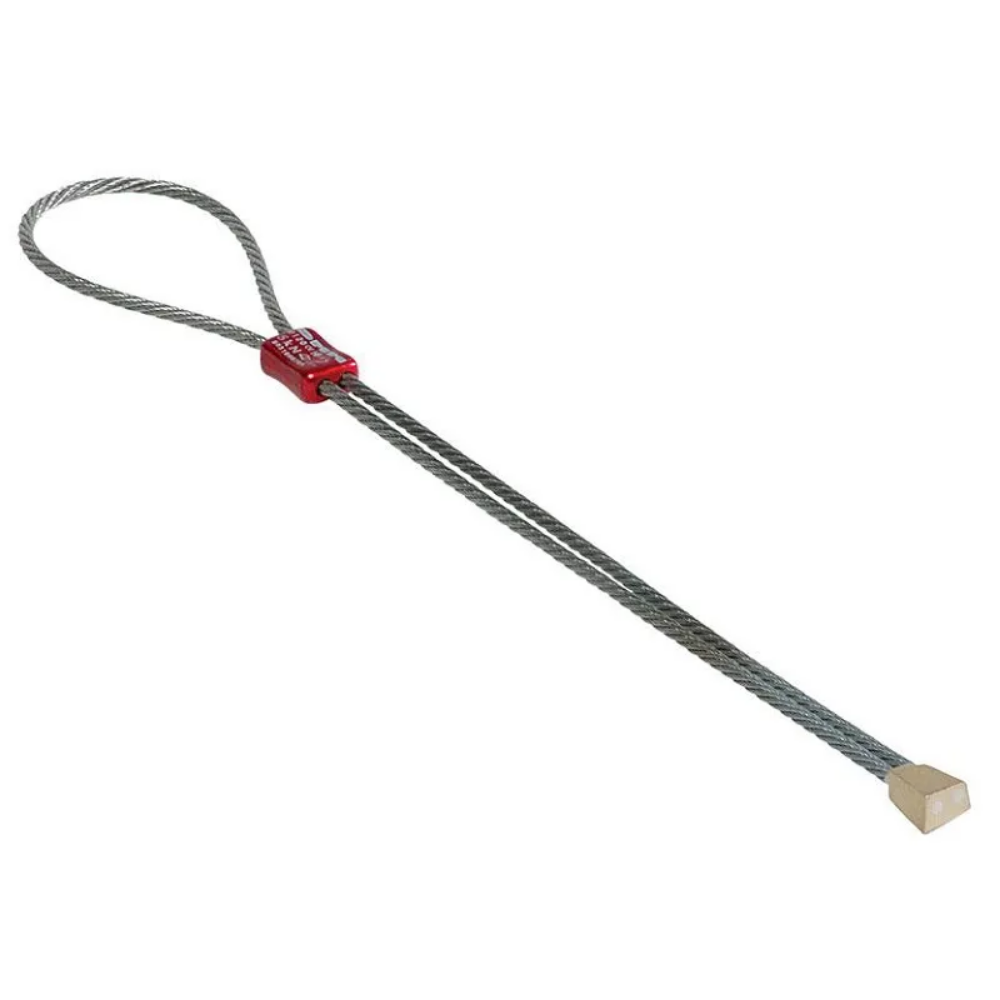

HB Brass Offset 2:
Colour: Red
Strength: 9kN
Weight: 5g
Range: 5.6 / 7.5mm

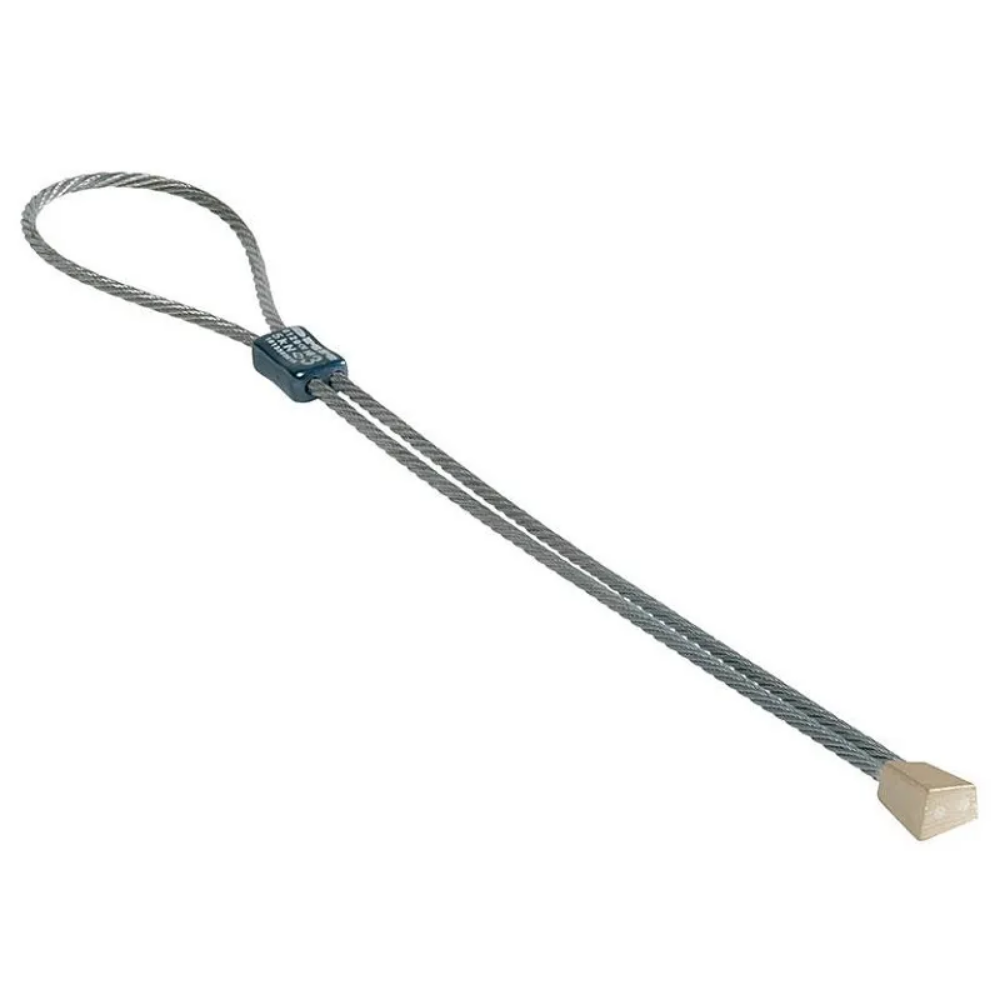

HB Brass Offset 3:
Colour: Silver
Strength: 5kN
Weight: 10g
Range: 6.0 / 8.5mm

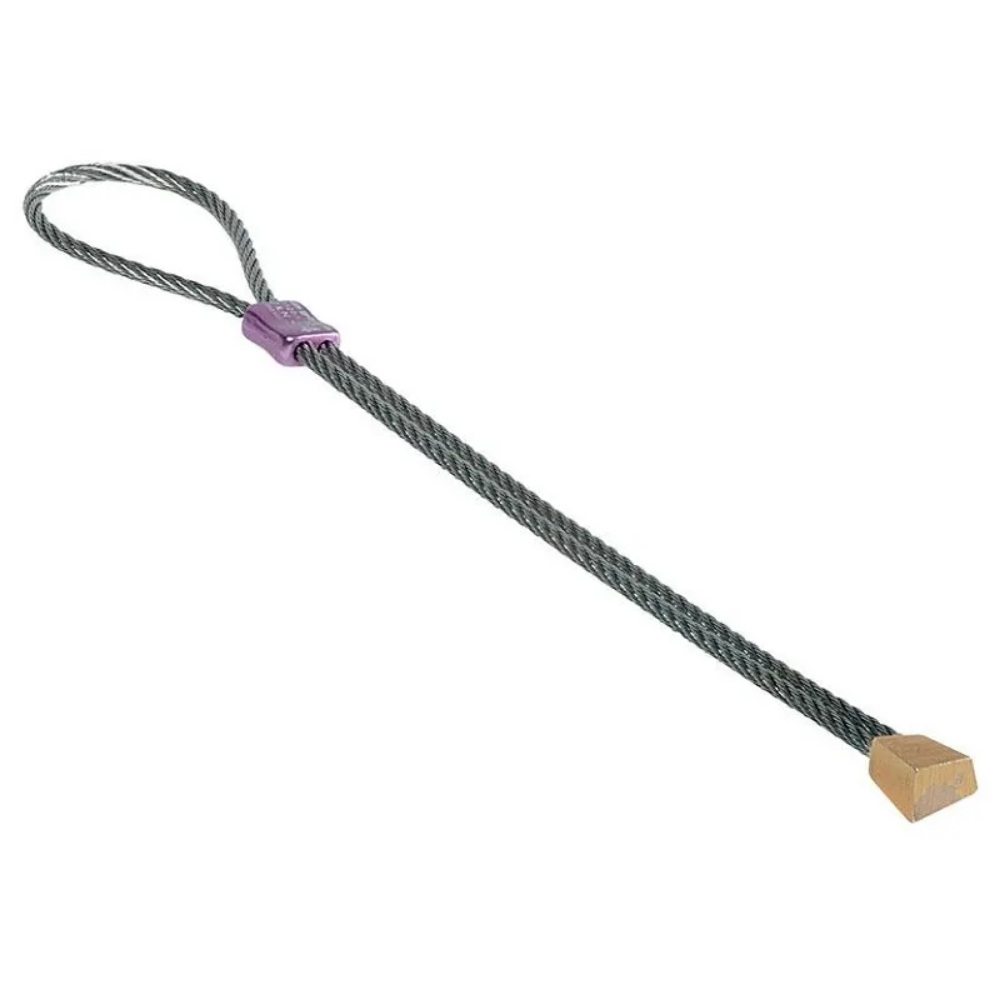

HB Brass Offset 4:
Colour: Purple
Strength: 7kN
Weight: 14g
Range: 7.5 / 10.2mm

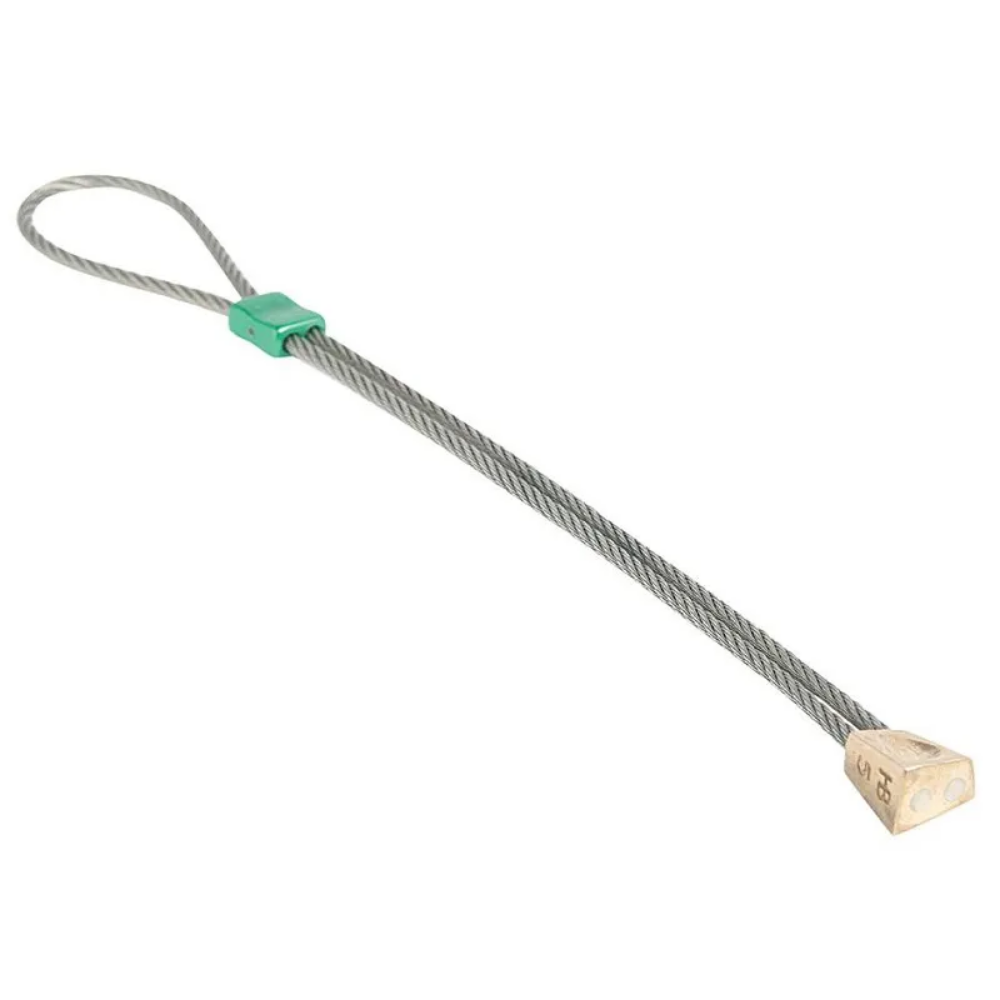

HB Brass Offset 5:
Colour: Green
Strength: 7kN
Weight: 17g
Range: 8.6 / 11.7mm
HB Brass Offset 6:
Colour: Silver
Strength: 10kN
Weight: 24g
Range: 9.8 / 13.9mm
