Manufacturer:

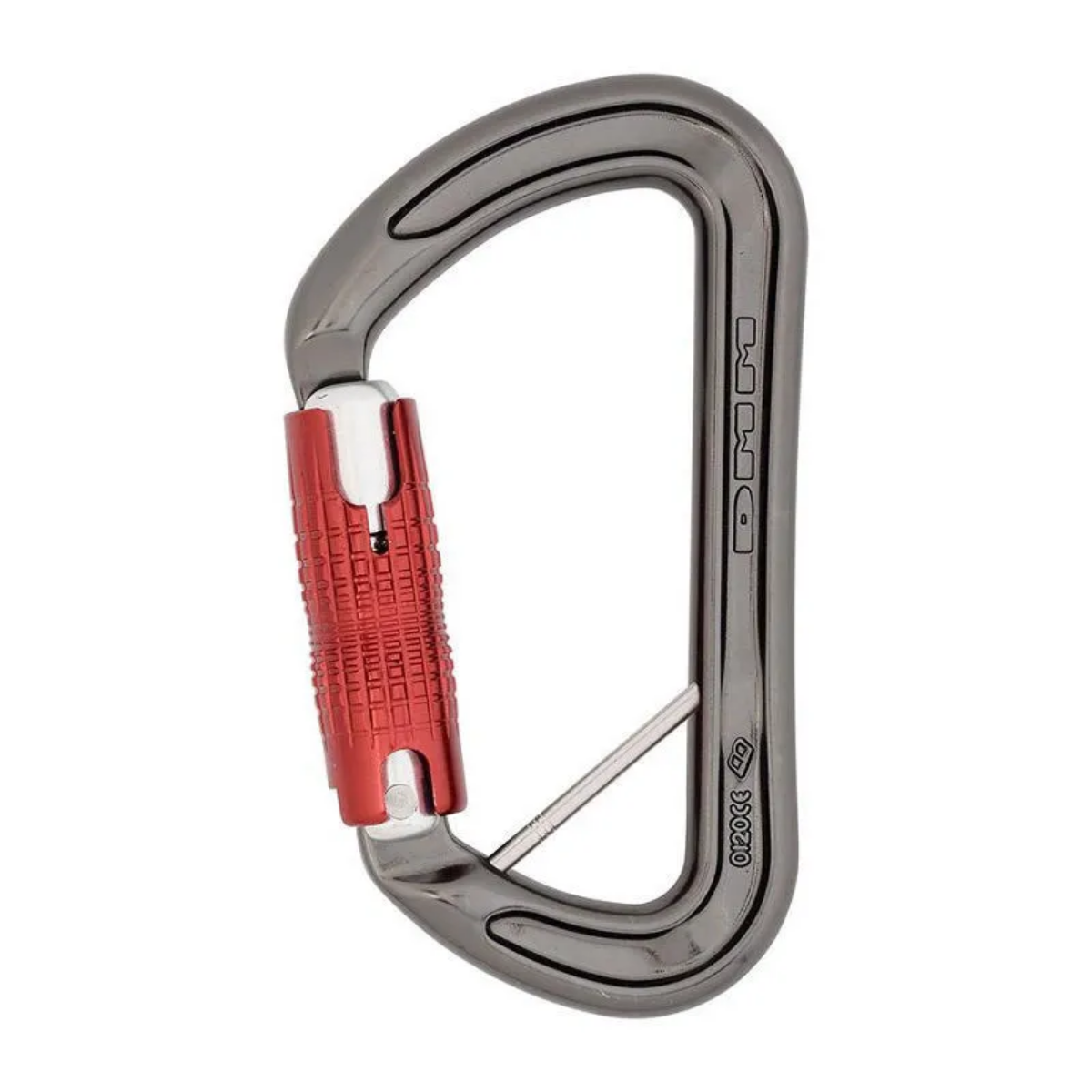

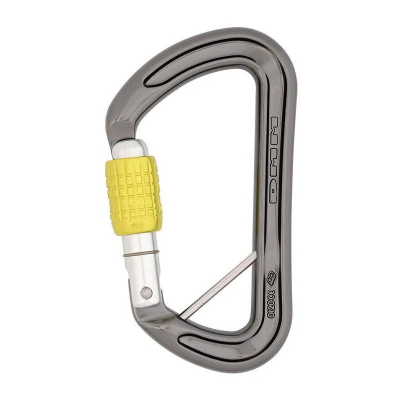

Zodiac 12mm Keylock with Captive Bar

The DMM Zodiac Karabiners are offset D connectors with an incredibly strong 32kN major axis, making them ideal for rescue loads and heavy rigging. The clean nose gate uses DMM's patented Taperlock design and their toughest barrel, giving very strong gate open and side face strengths. Can be used for general use where weight saving and high strength are important.

All variants out of stock


Features:
Offset D for ergonomics:
The Offset D connector shape takes the optimal loading of a D-shaped connector but with an increased internal volume at one end - the basket. This adds to the positivity in the hand, especially when wearing gloves.

Keylock clean nose for snag free connection:
DMM's patented 'Taperlock' closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

Captive bar option for security:
Many of DMM's connectors can be supplied cross-drilled to accommodate captive bars. This means that the lanyard or attachment cannot be removed and ensures that the direction of force applied in the event of a fall is along the major axis of the connector, giving maximum strength and holding power. The captive bars themselves are not for load bearing use.

Specification:
MBS (major axis): 32kN
MBS (minor axis): 12kN
MBS (gate open): 12kN
Dimensions: 66 x 114mm
Weight: 75g
Gate Opening: 18mm
Certifications: EN362:2004 T, EN12275:2013 B
