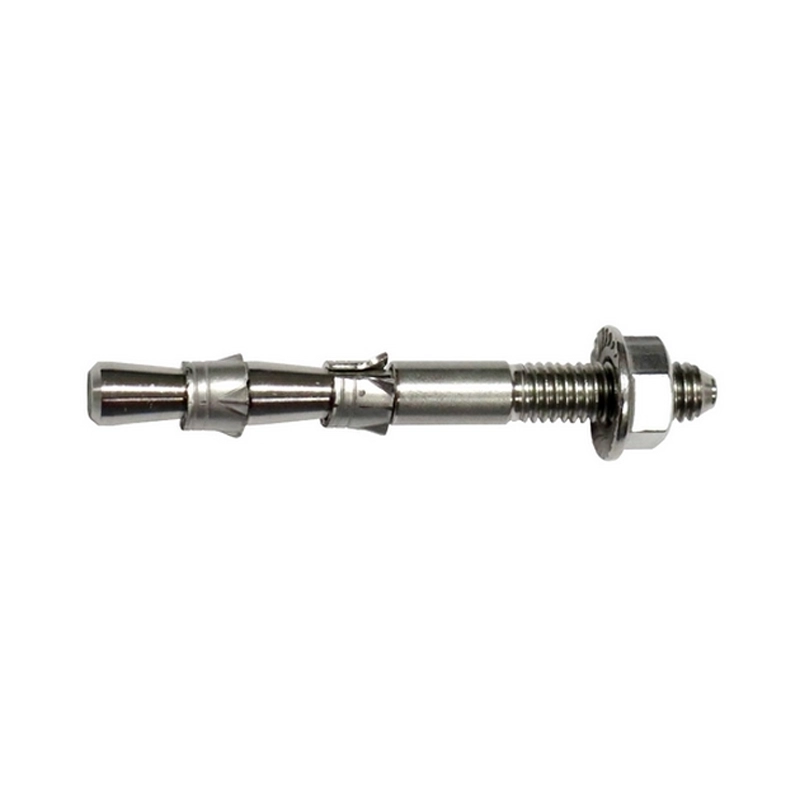

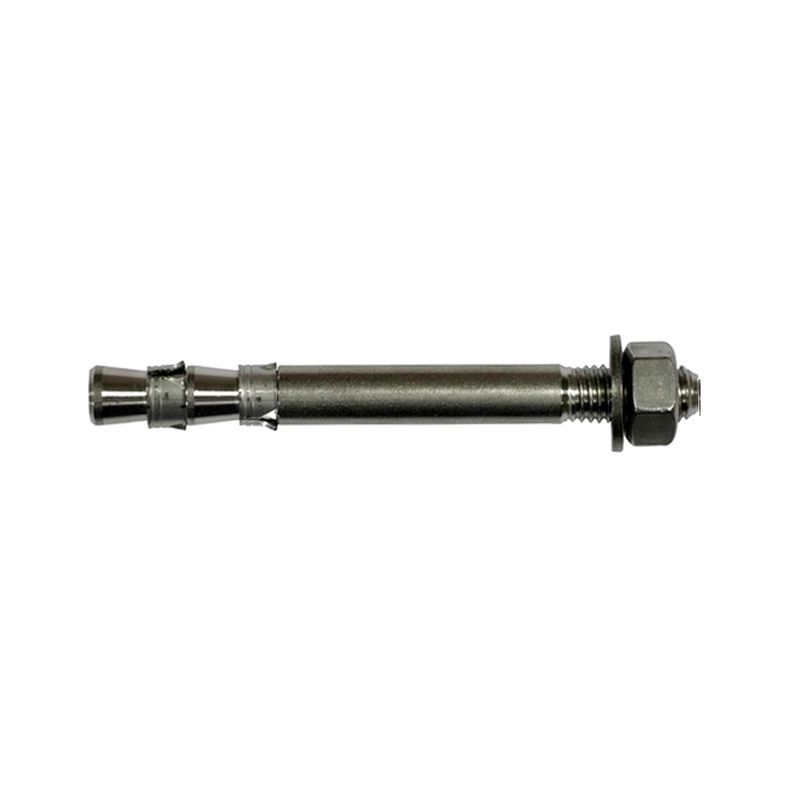

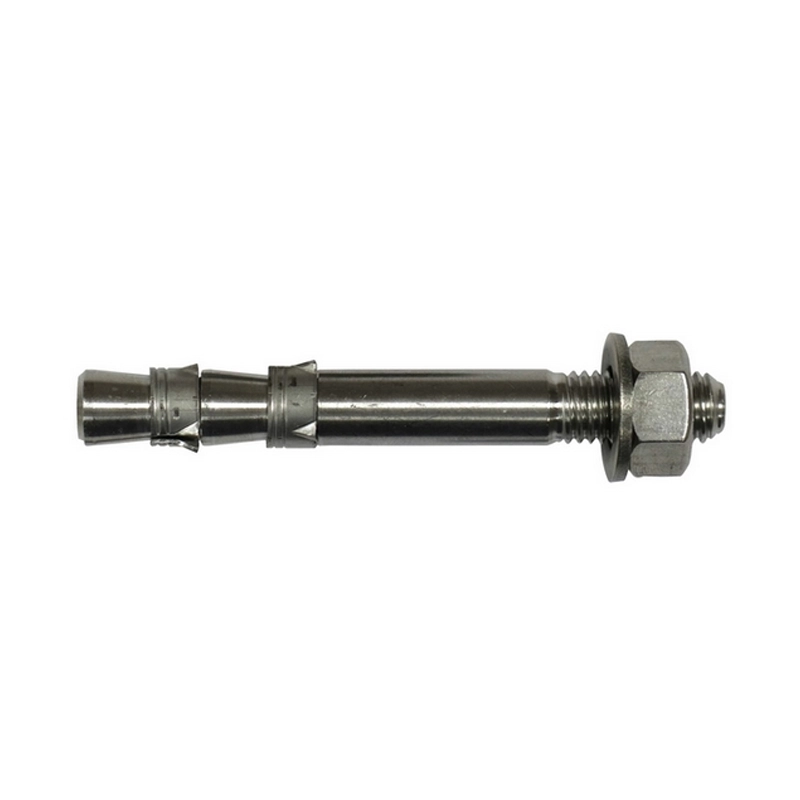

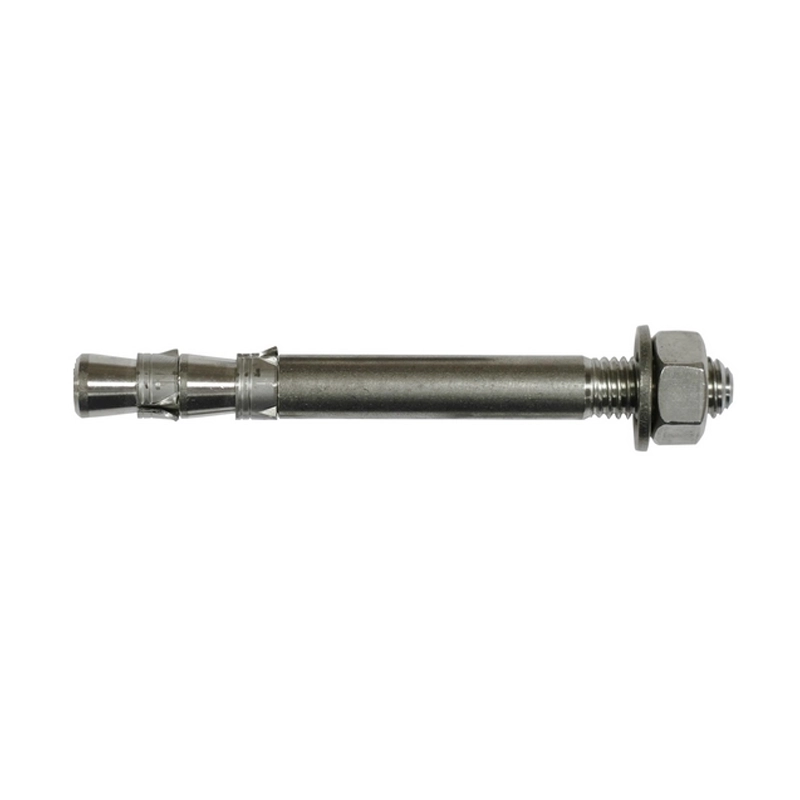

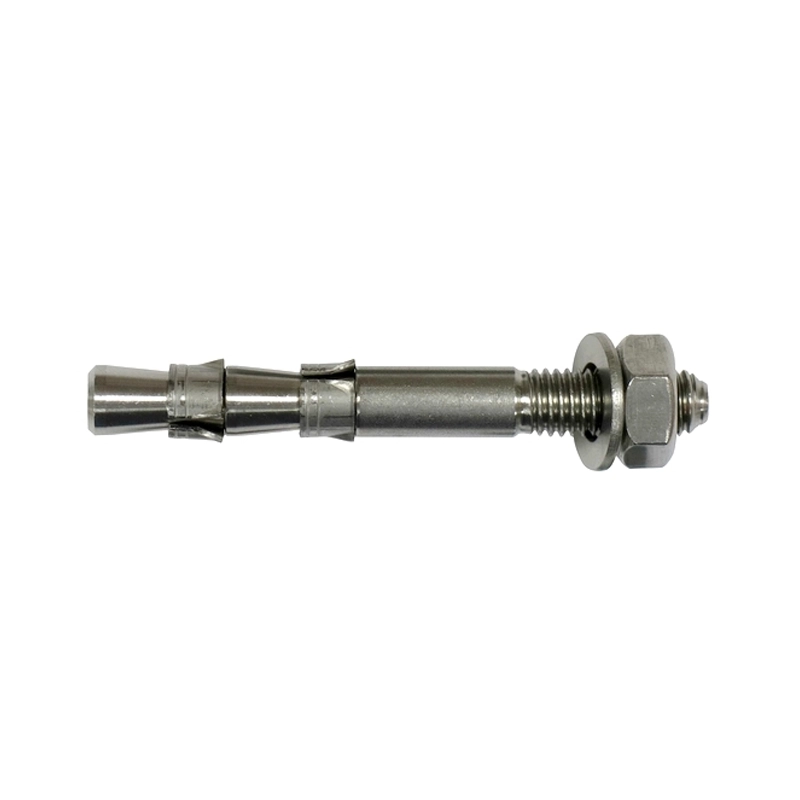

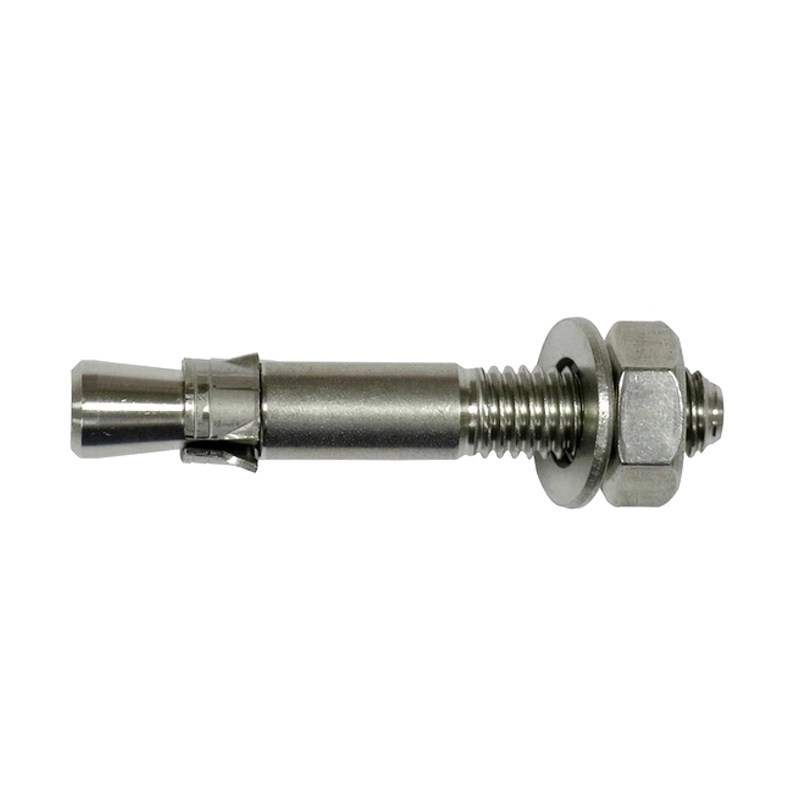

The Raumer Hang Fix expansion bolts have been designed for optimal performance across a wide range of surfaces. Featuring a newly engineered expanding collar that significantly improves grip and reliability. These are ideal for hard, compact rock such as limestone and dolomite, it's also effective on weathered or slightly damaged surfaces.
Not recommended for soft rock types like sandstone: In such cases, Raumer advise using fixed resin anchors (epoxy) or Multi-Monti screw anchors for better reliability.
Material & Corrosion Resistance: Made from AISI 316L stainless steel, this bolt offers superior corrosion resistance.
8mm x 78mm (122):
Use: Ideal for caving or cave rescue
Features: Two expanding collars; excellent in hard limestone
Extraction: 20 kN
Shear (Cut): 20 kN
Weight: 33 g
10mm x 66mm (156):
Use: Climbing and mountaineering
Rock Type: Requires hard, compact rock (limestone, dolomite)
Extraction: 21 kN
Shear (Cut): 26 kN
Weight: 49 g
10mm x 86mm (157):
Use: Climbing, mountaineering, rescue
Features: Two expanding collars; suitable for various rock types
Rock Type: Compact limestone and dolomite
Extraction: 21 kN
Shear (Cut): 26 kN
Weight: 60 g
10mm x 110mm (150):
Use: Anchoring in damaged or weathered rock
Features: Longest 10mm variant for maximum holding power
Rock Type: Dolomite, limestone
Extraction: 21 kN
Shear (Cut): 26 kN
Weight: 75 g
12mm x 100mm (114):
Use: Climbing and mountaineering
Features: Medium length with two expanding collars for "bomber" anchors
Rock Type: Hard, compact rock (limestone, dolomite)
Extraction: 24 kN
Shear (Cut): 30 kN
Weight: 100 g
12mm x 120mm (224):
Use: Climbing and mountaineering in compromised or soft surfaces
Features: Extra-long with two expanding collars; high reliability
Rock Type: Hard, compact or weathered limestone/dolomite
Extraction: 24 kN
Shear (Cut): 30 kN
Weight: 120 g
